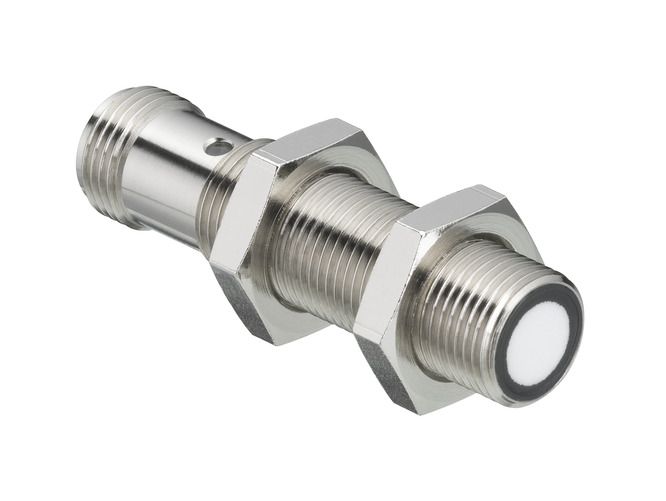

Leuze 50150584; HTU412B-500/L6T-M12; Ultrasonic sensor

Special version: Multiplex operation, Synchronous operation, Teach input; Operating range: 0.015 ... 0.5 m; Direction of beam: Front; Opening angle: 3 ... 11 °; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN); Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN); Switching frequency: 12 Hz; Interface: IO-Link; Connection: Connector, M12, 5 -pin; Design: Cylindrical, M12; Dimensions: 12 mm x 50 mm; Housing material: Metal
