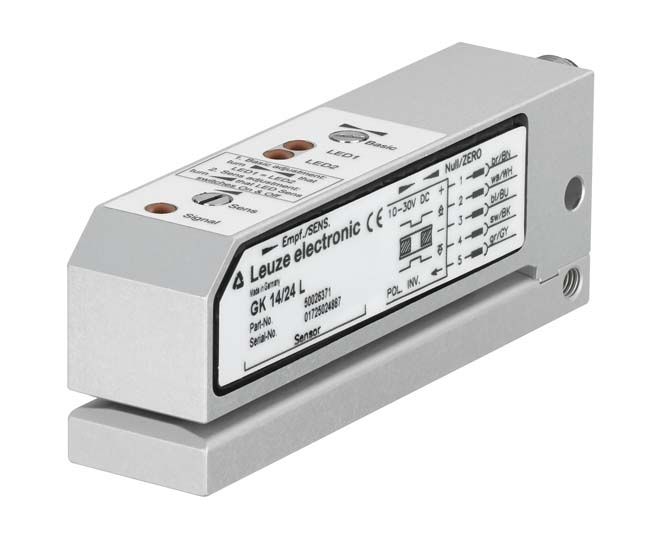

Leuze 50031714; GK 14/24 L.2; Capacitive fork sensor

Principle of physics: Capacitive; Application: Detection of non-transparent labels, Detection of transparent labels; Label width, min.: 10 mm; Label gap, min.: 2 mm; Medium: Transparent; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, PNP, Switching signal in label gap, reversible; Switching output 2: Transistor, NPN, Switching signal in label gap, reversible; Switching frequency: 5,000 Hz; Connection: Connector, M12, 5 -pin; Plug outlet: Vertical (perpendicular to belt movement); Mouth width: 1 mm; Mouth depth: 85 mm; Dimensions: 24 mm x 36.5 mm x 110 mm; Housing material: Metal, Aluminum; Operational controls: Multiturn potentiometer
