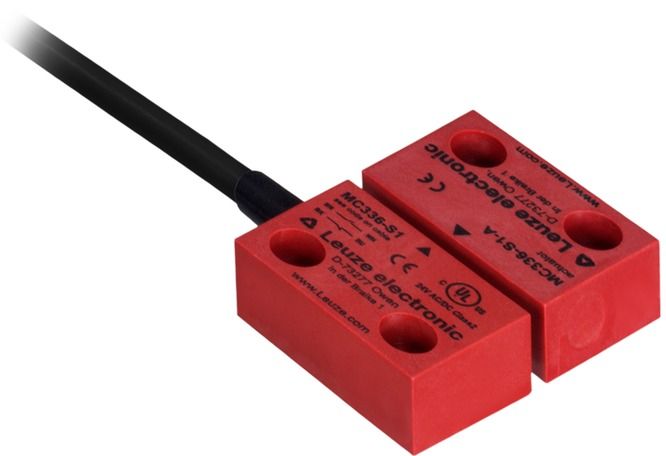

Leuze 63001055; MC336-S1R10-A; Magnetically coded sensor
$117.00
Overview
Leuze 63001055; MC336-S1R10-A; Magnetically coded sensor
Contact allocation: 1NC + 1NO; Connection: Cable with wire-end sleeves, 4 -wire, 10,000 mm, PUR; Dimension: 26.2 mm x 13 mm x 36 mm; Housing material: Plastic, Glass fiber reinforced (PPS), self-extinguishing; External actuator: Magnetically coded; Cut-out point (OFF), min.: 8 mm; Assured cut-out distance (Sar), min.: 11 mm; Assured cut-in distance (Sao), max.: 3 mm; Degree of protection: IP 67; Certifications: c UL US, TÜV Süd (with suitable safety relay)
| Mfg Part Number | MC336-S1R10-A |
|---|---|
| Piece per pack | 1 |
