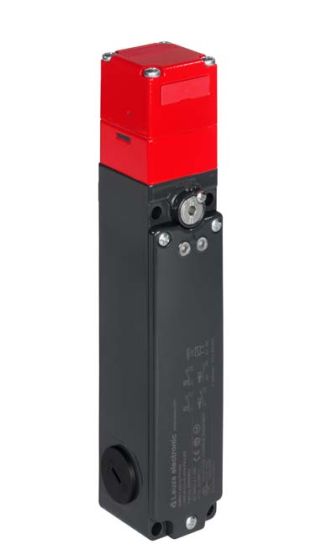

Leuze 63000650; L200-M1C3-SLM24-L2G; Safety locking device

Series: L200; Functions: Locking device with guard interlocking according to ISO 14119, Auxiliary release, Illuminated displays for magnet activation, Integration in control circuits up to category 4 in accordance with EN ISO 13849-1, Mechanical guard interlocking (spring-force); Operating principle: Quiescent current principle – Actuator locked if electromagnet is deactivated; Connection: Terminal, 10 -pin; Dimension: 45 mm x 46 mm x 194.7 mm; Housing material: Metal; Locking force, max.: 2,500 N; Degree of protection: IP 67; Certifications: IMQ, c UL US
