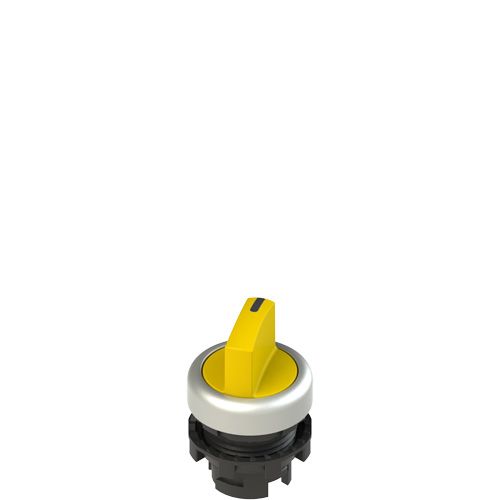

Pizzato E2 1SE12ACA59AB Short handle selector, 2 positions yellow with marking
Pizzato E2 1SE12ACA59AB
General data
Protection degree: IP67 acc. to EN 60529
IP69K acc. to ISO 20653
Ambient temperature: -25°C ... +80°C (standard)
-40°C ... +80°C (T6 option)
Safety parameter B10D: 2,000,000
Mechanical endurance: 1 million operating cycles
Max. actuation frequency: 3600 operating cycles/hour
Actuating force at limit of travel: 0.07 Nm (without contacts)
Maximum travel: 60° (2 stable positions)
40° (2 momentary positions)
±60° (3 stable positions)
±40° (3 momentary positions)
Tightening torque of the fixing ring: 2 ... 2.5 Nm
Main features
•Protection degrees IP67 and IP69K
•3 different shapes
•Standard or illuminated version
•Maintained or spring-return version
Mfg Part Number | 17659 |
---|---|
PDF File Link | https://www.pizzato.com/media/images/catalog/item/File/pdf/ZE_GCH04A20/ZE_GCH04A20-ENG_57-68.pdf |
