- Technical data - Indicators:LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status
- Technical data - Supply voltage:10 ... 30 VDC; Rated voltage: 32 V ~ rms
- Material data - Sheathed cable color:black
- Connection data - Wire colors:white, green, yellow, gray, pink, red, green/yellow, brown, blue
- Connection data - Length of connection cable:10m
- Connection data - Cable design:Wire cross-section: 0.34 mm2; Wire cross-section (2): 1 mm2
- Mechanical Data - Mounting type:Screw mounting
- Technical data - Signal characteristics:PNP
- Physical data - Width:60 mm / 2.362 inches
- Material data - Halogen-free:Yes
- Material data - Sheath material:PUR
- Material data - Housing material:PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
- Material data - Encapsulation:Fully encapsulated with conformal coating (UL 94 V0)
- Material data - Material properties of the connections:Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles
- Environmental requirements - Ambient temperature (operation):-25 ... +80 °C
- Environmental requirements - Ambient (operating) temperature (dynamic):-5 ... +80 °C
- Environmental requirements - Ambient (operating) temperature (static):-40 ... +90 °C
- Environmental requirements - Shock resistance:per IEC 60068-2-27
- Environmental requirements - Vibration resistance:per IEC 60068-2-6
- Commercial data - GTIN:4044920000000
- Commercial data - ETIM 8.0:EC002585
- Commercial data - ETIM 7.0:EC002585
- Commercial data - eClass 10.0:27-44-01-08
- Commercial data - eClass 9.0:27-44-01-08
- Commercial data - Customs tariff number:85366990990
- sku_code:757-264/000-010
- Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
- approvals_General approvals:UL - UL International Germany GmbH (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.5
- Environmental Product Compliance - RoHS Exemption:6(c)
- Commercial data - Country of origin:DE
- Environmental requirements - Pollution degree:3 per VDE 0110
- ACCESSORIES_Markingaccessories:
- 210-110
- 757-011
- ACCESSORIES_Assembling:757-060
- ACCESSORIES_Protection:756-8102
- manufacturer_description:M12 sensor/actuator box; 6-way; 4-pole; 10m connecting cable
- picture_filename_1:1024-020000000003f8ea000100b6-DE.jpg
- picture_zoom_filename_1:2000-020000000003f8ea000100b6-DE.jpg
- picture_filename_2:1024-0200000e00028129000200b6-DE.jpg
- picture_zoom_filename_2:2000-0200000e00028129000200b6-DE.jpg
- Physical data - Height:26 mm / 1.024 inches
- manufacturer_detailed_description:

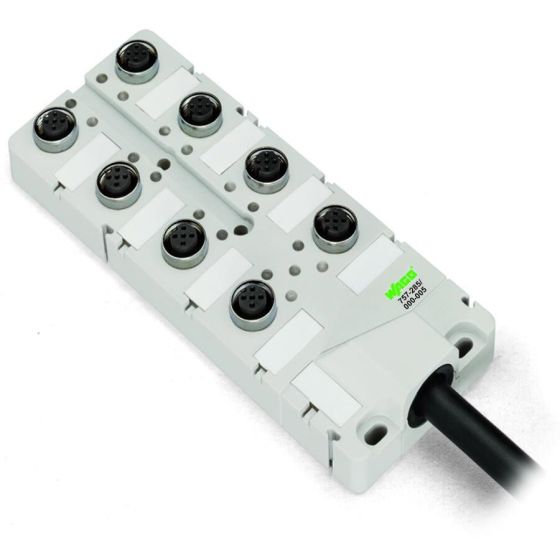

- M12 sensor/actuator box, 6-way
- 4-pole (1 signal per contact)
- Cable length: 5 and 10 m
- Green LED operating indicator
- Yellow LED status indicator
- incl. markers (10 pcs)
- incl. M12 protective caps (2 pcs)
- Physical data - Depth:123 mm / 4.843 inches
- Commercial data - Product Group:23 (I/O passive and accessories)
- picture_filename_3:1024-0200000e000283ac000300b6-DE.jpg
- picture_zoom_filename_3:2000-0200000e000283ac000300b6-DE.jpg
- Environmental requirements - Protection type:IP68
- Mechanical Data - Weight:1070g
- Environmental requirements - Note on protection type:72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps
- Technical data - Contact resistance (max.):0.01Ω
- Primary brand: Wago
- Functions: Passive field connection box for sensr. / act. devices
- Design: LED indicator
- Poles: 4-poles (4P)
- Supply voltage (DC): 10-30Vdc (12Vdc / 24Vdc nom.)
- Color: RAL 7035 Gray
- Connection capacity: 6-ports
- Connection type:
- 10m cable terminated with bare end flying leads
- 6 x 4-pin M12 connectors
- Mounting mode: Screw
- Dimensions: H26mm x W60mm x D123mm
- Material:
- Polyamide (PA) 66 (UL 94 V0)
- Halogen-free materials
- Ambient air temperature for operation: -25°C...+80°C
- GTIN code: 4044920000000
- ETIM code: EC002585
- eClass code: 27-44-01-08
- Customs Tariff Number: 85366990990
- Order code / Manufacturer SKU: 757-264/000-010
- Manufacturer product status: Commercialized
- Equivalent to: 757264000000
- Compliant with standard(s):
- General approvals
- - UL - UL International Germany GmbH (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.5
- RoHS compliant with exemption (6(c))
- Location of origin: Germany
- Degree of pollution: 3
- Application type:
- on machines
- field installation
- Cross-sells with:
- 210-110
- 756-8102
- 757-011
- 757-060
- Level 1 category: Enclosure systems
- Level 2 category: Junction boxes
- Product title: Passive field connection box for sensr. / act. devices - Wago
| Main function | Junction box |
|---|---|
| Product series / family name | 757 series |
| Supply voltage (DC) | 12Vdc, 24Vdc |
| Connection capacity | 6 ports |
| Connection type (electrical) | Bare end flying leads, M12 connector |
| Electrical connection pinout | 4-pin |
| Cable length (m) | 10m ≤ L < 20m |
| Mounting mode | Surface |
| Degree of protection | IP68 |
| Type - Installation | on machine / field |
| Type - Option | Standard (No options) |
