Wago - 812-113
$9.49
Wago - 812-113 is available to buy in increments of 1
Overview

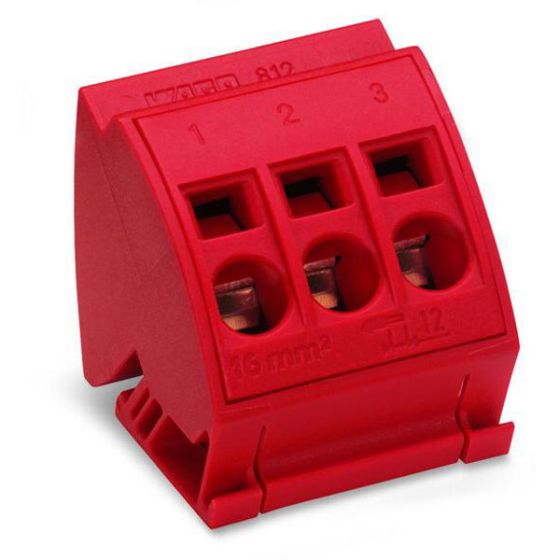

Busbar terminal block; for (10 x 3) mm busbars; 3-pole; without push-buttons; 4 mm²; CAGE CLAMP®; 16,00 mm²; red
- Connection data - Number of levels:1
- Connection data - Connection 1 - Actuation type:Operating tool
- Connection data - Connection 1 - Wiring direction:Front-entry wiring
- Connection data - Total number of potentials:1
- Electrical data - Ratings per IEC/EN - Rated current:96A
- Material data - Color:red
- Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):1000V
- Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):6kV
- Connection data - Connection 1 - Connection technology:CAGE CLAMP(R)
- Connection data - Connection 1 - Solid conductor:1.5 ... 16 mm2 / 14 ... 6 AWG
- Connection data - Connection 1 - Fine-stranded conductor:1.5 ... 16 mm2 / 14 ... 6 AWG
- Physical data - Width:38 mm / 1.496 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polyamide (PA66)
- Connection data - Connection 1 - Connectable conductor materials:Copper
- Environmental requirements - Continuous operating temperature:-35 ... +85 °C
- Commercial data - GTIN:4045450000000
- Commercial data - ETIM 8.0:EC000001
- Commercial data - ETIM 7.0:EC000001
- Commercial data - eClass 10.0:27-14-11-46
- Commercial data - eClass 9.0:27-14-11-46
- Commercial data - Customs tariff number:85369010000
- sku_code:812-113
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2160584.49
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7153
- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 2131504
- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Material data - Flammability class per UL94:V0
- Material data - Material group:I
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Commercial data - Country of origin:PL
- Electrical data - Ratings per IEC/EN - Legend (ratings):(III / 3) Overvoltage category III / Pollution degree 3
- ACCESSORIES_Ferrule:
- 216-101
- 216-102
- 216-103
- 216-104
- 216-106
- 216-107
- 216-108
- 216-109
- 216-110
- 216-121
- 216-122
- 216-123
- 216-124
- 216-131
- 216-132
- 216-151
- 216-152
- 216-201
- 216-202
- 216-203
- ACCESSORIES_Protection:284-400
- ACCESSORIES_N_busbar:210-133
- manufacturer_description:Busbar terminal block; for (10 x 3) mm busbars; without push-buttons; CAGE CLAMP(R); 16,00 mm2; red
- picture_filename_1:1024-0200000d0001746d000100b6-DE.jpg
- picture_zoom_filename_1:2000-0200000d0001746d000100b6-DE.jpg
- Material data - Weight:42g
- Material data - Fire load:0.851MJ
- picture_filename_2:1024-0200000d000176aa000100b6-DE.jpg
- picture_zoom_filename_2:2000-0200000d000176aa000100b6-DE.jpg
- Physical data - Height:42.5 mm / 1.673 inches
- Physical data - Depth:43.5 mm / 1.713 inches
- Commercial data - Product Group:12 (Matrix Patch Board)
- Primary brand: Wago
- Functions: Terminal strip
- Design: 1-deck/level
- Poles: 1-pole (1P)
- Rated current: (IEC) 96A
- Color: Red
- Connection capacity: 3-wires (3 clamps)
- Rated operating voltage (Ue): (IEC) 1000V
- Rated impulse voltage (Uimp): (IEC) 6kV
- Connection type: CAGE CLAMP spring connections
- Cross-section:
- for 1.5mm2...16mm2 fine stranded or solid conductors
- for #14AWG...#6AWG fine stranded or solid conductors
- Mounting mode: Mounts on a 10x3mm Copper bar
- Dimensions: H42.5mm x W38mm x D43.5mm
- Material: Polyamide (PA) 66
- GTIN code: 4045450000000
- ETIM code: EC000001
- eClass code: 27-14-11-46
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 812-113
- Manufacturer product status: Commercialized
- Equivalent to: 812113
- EAN code: 4045450000000
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate 2160584.49
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7153
- - CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 2131504
- - UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- RoHS compliant
- V-0 flammability rating
- Location of origin: Poland
- Cross-sells with:
- 210-133
- 216-101
- 216-102
- 216-103
- 216-104
- 216-106
- 216-107
- 216-108
- 216-109
- 216-110
- 216-121
- 216-122
- 216-123
- 216-124
- 216-131
- 216-132
- 216-151
- 216-152
- 216-201
- 216-202
- 216-203
- 284-400
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Terminal strip - 1-deck/level - Wago
| Main function | Terminal strip |
|---|---|
| Product series / family name | 812 series |
| Poles | 1P |
| Rated current | 90A < In ≤ 100A |
| Connection capacity | 3-wires |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 1.5mm2, 10mm2, 16mm2, 6mm2 |
| Cross-section (AWG) | 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG |
| Mounting mode | DIN rail |
| Type - Conductor insertion and removal | with tool |
| Type - Option | Standard (No options) |
