Overview

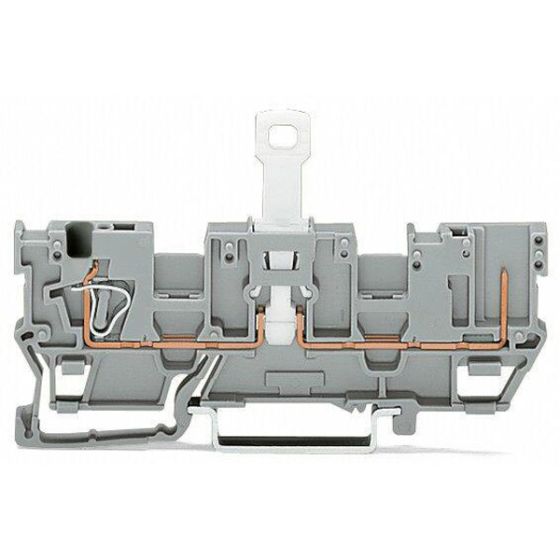

1-conductor/1-pin disconnect carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
- Connection data - Number of levels:1
- Connection data - Connection 1 - Actuation type:Operating tool
- Connection data - Connection 1 - Wiring direction:Front-entry wiring
- Mechanical Data - Design:horizontal type
- Connection data - Total number of potentials:1
- Connection data - Connection 1 - Number of connection points:1
- Connection data - Connection 2 - Number of connection points 2:1
- Electrical data - Ratings per IEC/EN - Rated current:16A
- Electrical data - Power Loss - Rated current In for specified power loss:16A
- Material data - Color:gray
- Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):400V
- Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):6kV
- Connection data - Connection 1 - Connection technology:CAGE CLAMP(R)
- Connection data - Connection 1 - Solid conductor:0.08 ... 4 mm2 / 28 ... 12 AWG
- Connection data - Connection 1 - Fine-stranded conductor:0.08 ... 4 mm2 / 28 ... 12 AWG
- Connection data - Connection 1 - Nominal cross-section:4 mm2 / 12 AWG
- Mechanical Data - Mounting type:DIN-35 rail
- Physical data - Width:5 mm / 0.197 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polyamide (PA66)
- Connection data - Connection 1 - Connectable conductor materials:Copper
- Environmental requirements - Processing temperature:-35 ... +85 °C
- Environmental requirements - Continuous operating temperature:-60 ... +105 °C
- Commercial data - GTIN:4044920000000
- Commercial data - ETIM 8.0:EC000902
- Commercial data - ETIM 7.0:EC000902
- Commercial data - eClass 10.0:27-14-11-26
- Commercial data - eClass 9.0:27-14-11-26
- Commercial data - Customs tariff number:85365080900
- Electrical data - Power Loss - Power loss, per pole (potential):0.256W
- sku_code:769-212
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626
- CSA - CSA Group - C22.2 - certificate 1101144
- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01
- UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171
- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Material data - Flammability class per UL94:V0
- Material data - Material group:I
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA
- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- Notes - Safety information:A separator plate (item no. 209-191) or a 10 mm end stop (item no. 249-117) must be placed at the end of a WAGO X-COM(R)-SYSTEM terminal strip.
- Commercial data - Country of origin:DE
- Mechanical Data - Marking level:Center marking
- Electrical data - Ratings per IEC/EN - Legend (ratings):(III / 3) Overvoltage category III / Pollution degree 3
- ACCESSORIES_Markingaccessories:
- 2009-145
- 248-501
- ACCESSORIES_Tools:210-720
- ACCESSORIES_Ferrule:
- 216-101
- 216-102
- 216-103
- 216-104
- 216-201
- 216-202
- 216-203
- 216-204
- 216-206
- 216-301
- 216-302
- ACCESSORIES_Assembling:
- 209-106
- 249-116
- ACCESSORIES_Check:
- 210-136
- 280-404
- 280-418
- 280-419
- ACCESSORIES_Protection:
- 769-438
- 769-439
- ACCESSORIES_Jumper:
- 280-402
- 280-409
- 780-452
- 780-453
- 780-454
- 780-455
- 780-456
- 780-457
- 780-458
- ACCESSORIES_Insulationstop:
- 769-470
- 769-471
- 769-472
- mandatory_ACCESSORIES_Endplate:
- 769-311
- 769-312
- ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
- ACCESSORIES_Coding:769-435
- ACCESSORIES_ProtectiveWarningMarker:280-415
- ACCESSORIES_Push_Intypewirejumper:
- 249-123
- 249-125
- 249-126
- 249-127
- ACCESSORIES_Endplate:769-314
- ACCESSORIES_Lockout:709-170
- manufacturer_description:1-conductor/1-pin disconnect carrier terminal block; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm2; CAGE CLAMP(R); 4,00 mm2; gray
- picture_filename_1:1024-020000070003b127000100b6-DE.jpg
- picture_zoom_filename_1:2000-020000070003b127000100b6-DE.jpg
- Material data - Weight:9g
- Material data - Fire load:0.18MJ
- picture_filename_2:1024-020000070003e93a000100b6-DE.jpg
- picture_zoom_filename_2:2000-020000070003e93a000100b6-DE.jpg
- Physical data - Height:87.5 mm / 3.445 inches
- Commercial data - Product Group:18 (X-COM-System)
- Physical data - Depth from upper-edge of DIN-rail:28.5 mm / 1.122 inches
- Electrical data - Power Loss - Resistance value for specified, current-dependent power loss:0.001Ω
- Primary brand: Wago
- Functions: Carrier feed-through/thru terminal block
- Design:
- 1-deck/level
- tab disconnect
- 2 jumper positions
- Poles: 1 feed-through pole (1P)
- Rated current:
- (IEC) 16A
- (UL) 20A
- (CSA) 20A
- Color: Gray
- Connection capacity: 2-wires (1 clamp + 1 plug-in pin) (1+1)
- Rated operating voltage (Ue):
- (IEC) 400V
- (UL) 300V
- (CSA) 300V
- Rated impulse voltage (Uimp): (IEC) 6kV
- Connection type:
- CAGE CLAMP spring connections
- Plug-in pin connections
- Cross-section:
- for 0.08mm2...4mm2 fine stranded or solid conductors
- for #28AWG...#12AWG fine stranded or solid conductors
- 4mm2 nominal cross-section
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H87.5mm x W5mm x D28.5mm
- Net Width (mm): 5mm
- Material: Polyamide (PA) 66
- GTIN code: 4044920000000
- ETIM code: EC000902
- eClass code: 27-14-11-26
- Customs Tariff Number: 85365080900
- Order code / Manufacturer SKU: 769-212
- Manufacturer product status: Commercialized
- EAN code: 4044920000000
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626
- - CSA - CSA Group - C22.2 - certificate 1101144
- - KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01
- - UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171
- - UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA
- - DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- RoHS compliant
- V-0 flammability rating
- Location of origin: Germany
