- Connection data - Number of levels:1
- Connection data - Connection 1 - Actuation type:Operating tool
- Connection data - Connection 1 - Wiring direction:Front-entry wiring
- Mechanical Data - Design:horizontal type
- Connection data - Total number of potentials:1
- Material data - Color:green-yellow
- Connection data - Connection 1 - Connection technology:CAGE CLAMP(R)
- Connection data - Connection 1 - Solid conductor:0.2 ... 16 mm2 / 24 ... 6 AWG
- Connection data - Connection 1 - Fine-stranded conductor:0.2 ... 16 mm2 / 24 ... 6 AWG
- Mechanical Data - Mounting type:DIN-35 rail
- Physical data - Width:12 mm / 0.472 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polyamide (PA66)
- Connection data - Connection 1 - Connectable conductor materials:Copper
- Environmental requirements - Processing temperature:-35 ... +85 °C
- Environmental requirements - Continuous operating temperature:-60 ... +105 °C
- Commercial data - GTIN:4045450000000
- Commercial data - ETIM 8.0:EC000901
- Commercial data - ETIM 7.0:EC000901
- Commercial data - eClass 10.0:27-14-11-41
- Commercial data - eClass 9.0:27-14-11-41
- Commercial data - Customs tariff number:85369010000
- sku_code:283-677/999-950
- Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7895
- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1536072
- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120777
- UL - UL International Germany GmbH - UL 1059 - certificate E45172
- Electrical data - Ratings per IEC/EN - Ratings per:IEC/EN 60947-7-2
- Material data - Flammability class per UL94:V0
- Material data - Material group:I
- approvals_Declarations of conformity and manufacturer's declarations:
- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG - certificate -
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA
- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV
- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- Notes - Safety information:Notice: This (ground) earth conductor terminal block cannot be commoned with adjacent jumpers.
- Environmental Product Compliance - RoHS Exemption:
- 7(a)
- 7(c)-I
- 7(c)-II
- approvals_Approvals for hazardous areas:
- AEx - UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt - UL 60079 - certificate E185892 (AEx e II resp. Ex e II)
- ATEX - Physikalisch Technische Bundesanstalt (PTB) - certificate PTB 98 ATEX 3132 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)
- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000232 (Ex eb IIC Gb / Ex eb I Mb)
- EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate RU C-DE.AM02.B.00127/19
- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb)
- Commercial data - Country of origin:DE
- Mechanical Data - Marking level:Center marking
- ACCESSORIES_Markingaccessories:
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 249-105
- 793-501
- 793-501/000-002
- 793-501/000-005
- 793-501/000-006
- 793-501/000-007
- 793-501/000-012
- 793-501/000-017
- 793-501/000-023
- 793-501/000-024
- 793-5501
- 793-5501/000-002
- ACCESSORIES_Tools:210-721
- ACCESSORIES_Ferrule:
- 216-108
- 216-109
- 216-286
- 216-287
- 216-288
- 216-289
- ACCESSORIES_Assembling:
- 209-106
- 249-116
- 709-154
- 709-168
- ACCESSORIES_Protection:283-400
- mandatory_ACCESSORIES_Endplate:283-354
- ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
- ACCESSORIES_ProtectiveWarningMarker:283-415

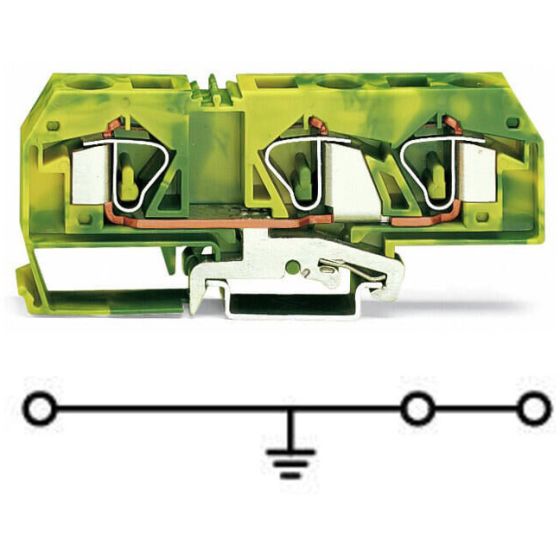

- manufacturer_description:3-conductor ground terminal block; 16 mm2; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP(R); 16,00 mm2; green-yellow
- picture_filename_1:1024-020000040003aa34000100b6-DE.jpg
- picture_zoom_filename_1:2000-020000040003aa34000100b6-DE.jpg
- Material data - Weight:57.3g
- Material data - Fire load:0.577MJ
- picture_filename_2:1024-020000040003a7c7000100b6-DE.jpg
- picture_zoom_filename_2:2000-020000040003a7c7000100b6-DE.jpg
- Physical data - Height:104.5 mm / 4.114 inches
- picture_filename_3:1024-02000019000310b9000100b6-DE.jpg
- picture_zoom_filename_3:2000-02000019000310b9000100b6-DE.jpg
- Physical data - Depth from upper-edge of DIN-rail:37.5 mm / 1.476 inches
- Primary brand: Wago
- Functions: Ground/earthing terminal block
- Design:
- 1-deck/level
- center marking slot
- Suitable for Ex e II applications
- Poles: 1 grounding / protective-earth (1PE)
- Color: Green-Yellow
- Connection capacity: 3-wires (1 clamp + 2 clamps) (1+2)
- Connection type: CAGE CLAMP spring connections
- Cross-section:
- for 0.2mm2...16mm2 fine stranded or solid conductors
- for #24AWG...#6AWG fine stranded or solid conductors
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H104.5mm x W12mm x D37.5mm
- Net Width (mm): 12mm
- Material: Polyamide (PA) 66
- GTIN code: 4045450000000
- ETIM code: EC000901
- eClass code: 27-14-11-41
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 283-677/999-950
- Manufacturer product status: Commercialized
- Equivalent to: 283678000000
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7895
- - CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1536072
- - KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120777
- - UL - UL International Germany GmbH - UL 1059 - certificate E45172
- Declarations of conformity and manufacturer's declarations
- - ATEX-Attestation of Conformity - WAGO GmbH & Co. KG
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA
- - BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV
- - DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- Approvals for hazardous areas
- - AEx - UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt - UL 60079 - certificate E185892 (AEx e II resp. Ex e II)
- - ATEX - Physikalisch Technische Bundesanstalt (PTB) - certificate PTB 98 ATEX 3132 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)
- - CCC - CNEX - GB/T 3836.3 - certificate 2020312313000232 (Ex eb IIC Gb / Ex eb I Mb)
- - EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate RU C-DE.AM02.B.00127/19
- - IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb)
- RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
- V-0 flammability rating
- Location of origin: Germany
- Cross-sells with:
- 283-354
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 209-106
- 210-112
- 210-113
- 210-114
- 210-115
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
- 210-721
- 216-108
- 216-109
- 216-286
- 216-287
- 216-288
- 216-289
- 249-105
- 249-116
- 283-400
- 283-415
- 709-154
- 709-168
- 793-501
- 793-501/000-002
- 793-501/000-005
- 793-501/000-006
- 793-501/000-007
- 793-501/000-012
- 793-501/000-017
- 793-501/000-023
- 793-501/000-024
- 793-5501
- 793-5501/000-002
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Ground/earthing terminal block - 1-deck/level - Wago
| Main function | Terminal |
|---|---|
| Product series / family name | 283 series |
| Poles | PE |
| Connection capacity | 3-wires (1+2) |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 0.2mm2, 10mm2, 16mm2, 6mm2 |
| Cross-section (AWG) | 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG |
| Mounting mode | DIN rail, DIN rail (NS 35/7.5) |
| Dimensions (mm) | W12...12.5mm |
| Type - Conductor insertion and removal | with tool |
| Type - Decks | 1 |
| Type - Terminal | grounding / earthing |
| Type - Option | ATEX compliant, special version (with center marking slot) |
