Wago - 2110-5201

Connection data - Number of levels:1
Connection data - Connection 1 - Actuation type:Lever
Connection data - Connection 1 - Wiring direction:Front-entry wiring
Connection data - Number of jumper slots:2
Connection data - Connection 2 - Actuation type 2:Push-button
Connection data - Total number of potentials:1
Electrical data - Ratings per IEC/EN - Rated current:57A
Electrical data - Ratings per UL - Rated current UL (Use Group B):65A
Electrical data - Ratings per UL - Rated current UL (Use Group C):65A
Electrical data - Power Loss - Rated current In for specified power loss:57A
Electrical data - Ex information - Rated current (Ex e II):57A
Electrical data - Ex information - Rated current (Ex e II) with jumper:50A
Material data - Color:gray
Material data - Actuator color:orange
Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):800V
Electrical data - Ratings per UL - Rated voltage UL (Use Group B):600V
Electrical data - Ratings per UL - Rated voltage UL (Use Group C):600V
Electrical data - Ex information - Rated voltage EN (Ex e II):550V
Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):8kV
Connection data - Connection 1 - Connection technology:Push-in CAGE CLAMP^(R)
Connection data - Connection 1 - Solid conductor:0.5 ... 16 mm2 / 20 ... 6 AWG
Connection data - Connection 1 - Fine-stranded conductor:0.5 ... 16 mm2 / 20 ... 6 AWG
Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule:0.5 ... 10 mm2 / 20 ... 8 AWG
Connection data - Connection 1 - Note (conductor cross-section):Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Connection data - Connection 1 - Solid conductor; push-in termination:4 ... 16 mm2 / 14 ... 6 AWG
Connection data - Connection 1 - Nominal cross-section:10 mm2
Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination:4 ... 10 mm2 / 12 ... 8 AWG
Mechanical Data - Mounting type:DIN-35 rail
Physical data - Width:10 mm / 0.394 inches
Material data - Note (material data):
Information on material specifications can be found here
Material data - Insulation material:Polyamide (PA66)
Connection data - Connection 1 - Connectable conductor materials:Copper
Environmental requirements - Processing temperature:-35 ... +85 °C
Environmental requirements - Continuous operating temperature:-60 ... +105 °C
Commercial data - GTIN:4055140000000
Commercial data - ETIM 8.0:EC000897
Commercial data - ETIM 7.0:EC000897
Commercial data - Customs tariff number:85369010000
Electrical data - Power Loss - Power loss, per pole (potential):1.819W
sku_code:2110-5201
Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7757
- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-109053
- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
Electrical data - Ratings per IEC/EN - Ratings per:IEC/EN 60947-7-1
Material data - Flammability class per UL94:V0
Material data - Material group:I
approvals_Declarations of conformity and manufacturer's declarations:
- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG - certificate -
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
Electrical data - Ratings per UL - Approvals per:UL 1059
approvals_Approvals for hazardous areas:
- ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB 19 ATEX 1017 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)
- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000165 (Ex eb IIC Gb / Ex eb I Mb)
- cURus - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)
- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 19.0047U (Ex eb IIC Gb or Ex eb I Mb)
- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 20.0893 U
Electrical data - Ex information - Ratings per:ATEX: PTB 19 ATEX 1017 U / IECEx: PTB 19.0047U (Ex eb IIC Gb)
Commercial data - Country of origin:PL
Mechanical Data - Marking level:Center/side marking
Electrical data - Ratings per IEC/EN - Legend (ratings):(III / 3) Overvoltage category III / Pollution degree 3
ACCESSORIES_Markingaccessories:
- 2009-110
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 2009-191
- 2009-192
- 2009-193
ACCESSORIES_Tools:210-721
ACCESSORIES_Ferrule:
- 216-286
- 216-287
- 216-288
- 216-289
ACCESSORIES_Assembling:
- 709-156
- 709-169
ACCESSORIES_Check:
- 2009-174
- 2009-182
- 2010-511
- 2010-549
- 210-136
ACCESSORIES_Protection:2010-100
ACCESSORIES_Jumper:
- 2010-402
- 2010-403
- 2010-404
- 2010-405
- 2010-405/011-000
- 2010-433
- 2010-434
- 2010-435
mandatory_ACCESSORIES_Endplate:
- 2110-1291
- 2110-1292
ACCESSORIES_Carrierrail:
- 210-113
- 210-114
- 210-118
- 210-196
- 210-197
- 210-198
ACCESSORIES_Screwlessendstop:249-117
manufacturer_description:2-conductor through terminal block; with lever and push-button; 10 mm2; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP(R); 10,00 mm2; gray
Material data - Weight:25.7g
Material data - Fire load:0.113MJ
Physical data - Height:89 mm / 3.504 inches
Physical data - Depth from upper-edge of DIN-rail:36.9 mm / 1.453 inches
Electrical data - Power Loss - Resistance value for specified, current-dependent power loss:0.001Ω
Primary brand: Wago
Functions: Feed-through/thru terminal block
Design:
- 1-deck/level
- lever + btn.
- side and center marking slot
- with test port
Poles: 1 feed-through pole (1P)
Rated current:
- (IEC) 57A
- (IEC) 74A
- (UL) 65A
- (Ex e II) 57A
- (Ex e II with jumper) 50A
Color:
- Gray
- Orange actuator
Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
Rated operating voltage (Ue):
- (IEC) 800V
- (UL) 600V
- (Ex e II) 550V
Rated impulse voltage (Uimp): (IEC) 8kV
Connection type: Push-in CAGE CLAMP spring connections
Cross-section:
- for 0.5mm2...16mm2 fine stranded or solid conductors
- for #20AWG...#6AWG fine stranded or solid conductors
- 10mm2 nominal cross-section
Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
Dimensions: H89mm x W10mm x D36.9mm
Net Width (mm): 10mm
Material: Polyamide (PA) 66
GTIN code: 4055140000000
ETIM code: EC000897
Customs Tariff Number: 85369010000
Order code / Manufacturer SKU: 2110-5201
Manufacturer product status: Commercialized
Equivalent to: 21105201
EAN code: 4055140000000
Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7757
- - KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-109053
- - UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Declarations of conformity and manufacturer's declarations
- - ATEX-Attestation of Conformity - WAGO GmbH & Co. KG
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for hazardous areas
- - ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB 19 ATEX 1017 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)
- - CCC - CNEX - GB/T 3836.3 - certificate 2020312313000165 (Ex eb IIC Gb / Ex eb I Mb)
- - cURus - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)
- - IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 19.0047U (Ex eb IIC Gb or Ex eb I Mb)
- - INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 20.0893 U
- RoHS compliant
- V-0 flammability rating
Location of origin: Poland
Cross-sells with:
- 2110-1291
- 2110-1292
- 2009-110
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 2009-174
- 2009-182
- 2009-191
- 2009-192
- 2009-193
- 2010-100
- 2010-402
- 2010-403
- 2010-404
- 2010-405
- 2010-405/011-000
- 2010-433
- 2010-434
- 2010-435
- 2010-511
- 2010-549
- 210-113
- 210-114
- 210-136
- 210-196
- 210-197
- 210-198
- 210-721
- 216-286
- 216-287
- 216-288
- 216-289
- 249-117
- 709-156
- 709-169
Level 1 category: Electrical components
Level 2 category: Terminal blocks

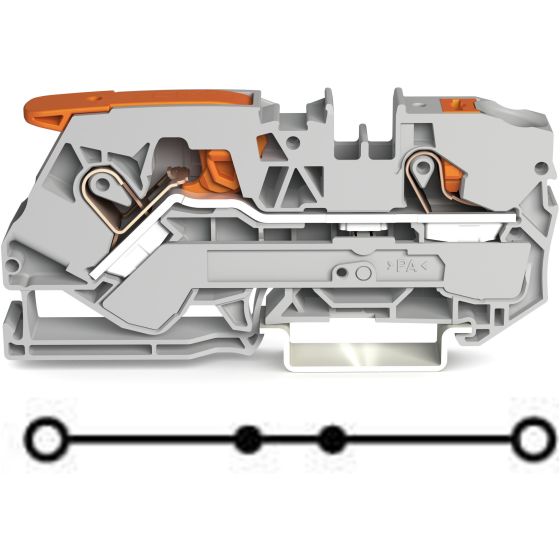

Product title: Feed-through/thru terminal block - 1-deck/level - Wago (TOPJOB S series)

More Information
Main function	Terminal
Product series / family name	2110 series
Sub-range name	TOPJOB S series
Poles	1P
Rated current	50A < In ≤ 60A, 70A < In ≤ 80A
Connection capacity	2-wires (1+1)
Connection type (electrical)	Terminals (Spring)
Cross-section (mm2)	0.5mm2, 10mm2, 16mm2, 6mm2
Cross-section (AWG)	10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, 8 AWG, 9 AWG
Mounting mode	DIN rail, DIN rail (NS 35/7.5)
Dimensions (mm)	W10...10.4mm
Type - Conductor insertion and removal	push-in, with push-button
Type - Decks	1
Type - Terminal	feed-through
Type - Option	ATEX compliant, special version (with test points)
