Wago - 2102-1207

$6.79

Wago - 2102-1207 is available to buy in increments of 1

Overview

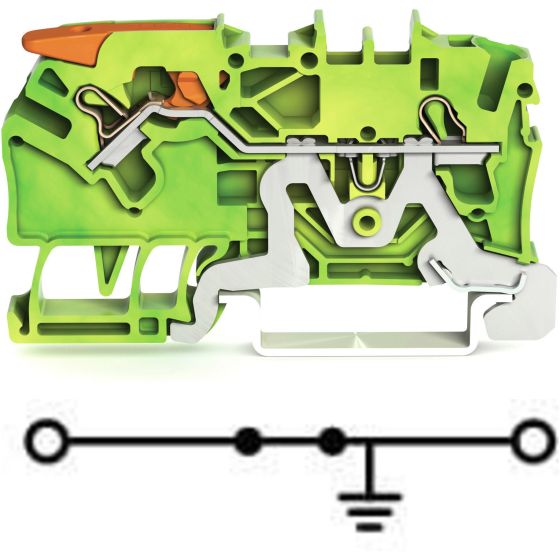

2-conductor ground terminal block; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Connection data - Number of levels:1
Connection data - Connection 1 - Actuation type:Lever
Connection data - Connection 1 - Wiring direction:Front-entry wiring
Connection data - Number of jumper slots:2
Connection data - Connection 2 - Actuation type 2:Operating tool
Connection data - Total number of potentials:1
Material data - Color:green-yellow
Material data - Actuator color:orange
Electrical data - Ratings per UL - Rated voltage UL (Use Group B):V
Electrical data - Ratings per UL - Rated voltage UL (Use Group C):V
Connection data - Connection 1 - Connection technology:Push-in CAGE CLAMP^(R)
Connection data - Connection 1 - Solid conductor:0.25 ... 4 mm2 / 22 ... 12 AWG
Connection data - Connection 1 - Fine-stranded conductor:0.25 ... 4 mm2 / 22 ... 12 AWG
Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule:0.25 ... 2.5 mm2 / 22 ... 14 AWG
Connection data - Connection 1 - Note (conductor cross-section):Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Connection data - Connection 1 - Solid conductor; push-in termination:0.75 ... 4 mm2 / 18 ... 12 AWG
Connection data - Connection 1 - Nominal cross-section:2.5 mm2
Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination:1 ... 2.5 mm2 / 18 ... 14 AWG
Mechanical Data - Mounting type:DIN-35 rail
Physical data - Width:5.2 mm / 0.205 inches
Material data - Note (material data):
Information on material specifications can be found here
Material data - Insulation material:Polyamide (PA66)
Connection data - Connection 1 - Connectable conductor materials:Copper
Environmental requirements - Processing temperature:-35 ... +85 °C
Environmental requirements - Continuous operating temperature:-60 ... +105 °C
Commercial data - GTIN:4055140000000
Commercial data - ETIM 8.0:EC000901
Commercial data - ETIM 7.0:EC000901
Commercial data - eClass 10.0:27-14-11-41
Commercial data - eClass 9.0:27-14-11-41
Commercial data - Customs tariff number:85369010000
sku_code:2102-1207
Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7670
- CSA - DEKRA Certification B.V. - C22.2 - certificate 70175030
- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-102882
Electrical data - Ratings per IEC/EN - Ratings per:IEC/EN 60947-7-2
Material data - Flammability class per UL94:V0
approvals_Declarations of conformity and manufacturer's declarations:
- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG - certificate -
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - certificate 19-HG1866350-PDA
- BV - Bureau Veritas S.A. - IEC 60947 - certificate 58186/A0 BV
- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00003JT
- LR - Lloyds Register - certificate 19/20050
approvals_Approvals for hazardous areas:
- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate 20181105-E185892 (AEx eb IIC resp. Ex eb IIC)
- ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)
- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000163 (Ex eb IIC Gb / Ex eb I Mb)
- EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate RU C-DE.AM02.B.00127/19 (Ex e IIC Gb U)
- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb)
- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 19.0818 U
Commercial data - Country of origin:DE
Mechanical Data - Marking level:Center/side marking
ACCESSORIES_Markingaccessories:
- 2002-161
- 2009-110
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 2009-191
- 2009-192
ACCESSORIES_Tools:
- 210-658
- 210-720
ACCESSORIES_Ferrule:
- 216-241
- 216-242
- 216-243
- 216-244
- 216-246
- 216-262
- 216-263
- 216-264
- 216-266
ACCESSORIES_Assembling:
- 709-156
- 709-169
ACCESSORIES_Check:
- 2002-511
- 2002-549
- 2002-552
- 2002-553
- 2002-554
- 2002-555
- 2002-556
- 2002-557
- 2002-558
- 2002-559
- 2002-560
- 2002-611
- 2002-649
- 2009-174
- 2009-182
- 210-136
ACCESSORIES_Jumper:
- 2002-400
- 2002-402
- 2002-402/000-005
- 2002-402/000-006
- 2002-403
- 2002-403/000-005
- 2002-403/000-006
- 2002-404
- 2002-404/000-005
- 2002-404/000-006
- 2002-405
- 2002-405/000-005
- 2002-405/000-006
- 2002-405/011-000
- 2002-406
- 2002-406/000-005
- 2002-406/000-006
- 2002-406/020-000
- 2002-407
- 2002-407/000-005
ACCESSORIES_Insulationstop:
- 2002-171
- 2002-172
mandatory_ACCESSORIES_Endplate:
- 2102-1291
- 2102-1292
ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
ACCESSORIES_ProtectiveWarningMarker:2002-115
ACCESSORIES_Screwlessendstop:249-117
ACCESSORIES_Push_Intypewirejumper:
- 2009-412
- 2009-414
- 2009-414/000-005
- 2009-414/000-006
- 2009-416
manufacturer_description:2-conductor ground terminal block; with lever and Push-in CAGE CLAMP(R); 2.5 mm2; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP(R); 2,50 mm2; green-yellow
Material data - Weight:9.9g
Material data - Fire load:0.15MJ
Physical data - Height:63.8 mm / 2.512 inches
Physical data - Depth from upper-edge of DIN-rail:32.9 mm / 1.295 inches
Primary brand: Wago
Functions: Ground/earthing terminal block
Design:
- 1-deck/level
- lever
- side and center marking slot
- with test port
Poles: 1 grounding / protective-earth (1PE)
Color:
- Green-Yellow
- Orange actuator
Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
Connection type: Push-in CAGE CLAMP spring connections
Cross-section:
- for 0.25mm2...4mm2 fine stranded or solid conductors
- for #22AWG...#12AWG fine stranded or solid conductors
- 2.5mm2 nominal cross-section
Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
Dimensions: H63.8mm x W5.2mm x D32.9mm
Net Width (mm): 5.2mm
Material: Polyamide (PA) 66
GTIN code: 4055140000000
ETIM code: EC000901
eClass code: 27-14-11-41
Customs Tariff Number: 85369010000
Order code / Manufacturer SKU: 2102-1207
Manufacturer product status: Commercialized
Equivalent to: 21021207
EAN code: 4055140000000
Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7670
- - CSA - DEKRA Certification B.V. - C22.2 - certificate 70175030
- - cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- - KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-102882
- Declarations of conformity and manufacturer's declarations
- - ATEX-Attestation of Conformity - WAGO GmbH & Co. KG
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - certificate 19-HG1866350-PDA
- - BV - Bureau Veritas S.A. - IEC 60947 - certificate 58186/A0 BV
- - DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00003JT
- - LR - Lloyds Register - certificate 19/20050
- Approvals for hazardous areas
- - AEx - Underwriters Laboratories Inc. - UL 60079 - certificate 20181105-E185892 (AEx eb IIC resp. Ex eb IIC)
- - ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)
- - CCC - CNEX - GB/T 3836.3 - certificate 2020312313000163 (Ex eb IIC Gb / Ex eb I Mb)
- - EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate RU C-DE.AM02.B.00127/19 (Ex e IIC Gb U)
- - IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb)
- - INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 19.0818 U
- RoHS compliant
- V-0 flammability rating
Location of origin: Germany
Cross-sells with:
- 2102-1291
- 2102-1292
- 2002-115
- 2002-161
- 2002-171
- 2002-172
- 2002-400
- 2002-402
- 2002-402/000-005
- 2002-402/000-006
- 2002-403
- 2002-403/000-005
- 2002-403/000-006
- 2002-404
- 2002-404/000-005
- 2002-404/000-006
- 2002-405
- 2002-405/000-005
- 2002-405/000-006
- 2002-405/011-000
- 2002-406
- 2002-406/000-005
- 2002-406/000-006
- 2002-406/020-000
- 2002-407
- 2002-407/000-005
- 2002-511
- 2002-549
- 2002-552
- 2002-553
- 2002-554
- 2002-555
- 2002-556
- 2002-557
- 2002-558
- 2002-559
- 2002-560
- 2002-611
- 2002-649
- 2009-110
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 2009-174
- 2009-182
- 2009-191
- 2009-192
- 2009-412
- 2009-414
- 2009-414/000-005
- 2009-414/000-006
- 2009-416
- 210-112
- 210-113
- 210-114
- 210-115
- 210-136
- 210-196
- 210-197
- 210-198
- 210-658
- 210-720
- 216-241
- 216-242
- 216-243
- 216-244
- 216-246
- 216-262
- 216-263
- 216-264
- 216-266
- 249-117
- 709-156
- 709-169
Level 1 category: Electrical components
Level 2 category: Terminal blocks
Product title: Ground/earthing terminal block - 1-deck/level - Wago (TOPJOB S series)

More Information

More Information
Main function	Terminal
Product series / family name	2102 series
Sub-range name	TOPJOB S series
Poles	PE
Connection capacity	2-wires (1+1)
Connection type (electrical)	Terminals (Spring)
Cross-section (mm2)	0.25mm2, 4mm2
Cross-section (AWG)	12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, 21 AWG, 22 AWG
Mounting mode	DIN rail, DIN rail (NS 35/7.5)
Dimensions (mm)	W5...5.2mm
Type - Conductor insertion and removal	push-in, with tool
Type - Decks	1
Type - Terminal	grounding / earthing
Type - Option	ATEX compliant, special version (with test points)
