- Connection data - Number of levels:1
- Connection data - Connection 1 - Actuation type:Operating tool
- Connection data - Connection 1 - Wiring direction:Front-entry wiring
- Connection data - Number of jumper slots:2
- Connection data - Total number of potentials:2
- Electrical data - Ratings per IEC/EN - Rated current:30A
- Electrical data - Ratings per UL - Rated current UL (Use Group B):30A
- Electrical data - Ratings per CSA - Rated current CSA (Use Group B):30A
- Electrical data - Ratings per UL - Rated current UL (Use Group C):30A
- Electrical data - Ratings per CSA - Rated current CSA (Use Group C):30A
- Electrical data - Power Loss - Rated current In for specified power loss:30A
- Material data - Color:blue
- Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):800V
- Electrical data - Ratings per UL - Rated voltage UL (Use Group B):600V
- Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B):600V
- Electrical data - Ratings per UL - Rated voltage UL (Use Group C):600V
- Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C):600V
- Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):8kV
- Connection data - Connection 1 - Connection technology:Push-in CAGE CLAMP(R)
- Connection data - Connection 1 - Solid conductor:0.5 ... 10 mm2 / 20 ... 8 AWG
- Connection data - Connection 1 - Fine-stranded conductor:0.5 ... 10 mm2 / 20 ... 8 AWG
- Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule:0.5 ... 6 mm2 / 20 ... 10 AWG
- Connection data - Connection 1 - Note (conductor cross-section):Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Connection data - Connection 1 - Solid conductor; push-in termination:2.5 ... 10 mm2 / 14 ... 8 AWG
- Connection data - Connection 1 - Nominal cross-section:6 mm2
- Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination:2.5 ... 6 mm2 / 16 ... 10 AWG
- Mechanical Data - Mounting type:DIN-35 rail
- Physical data - Width:7.5 mm / 0.295 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polyamide (PA66)
- Connection data - Connection 1 - Connectable conductor materials:Copper
- Environmental requirements - Processing temperature:-35 ... +85 °C
- Environmental requirements - Continuous operating temperature:-60 ... +105 °C
- Commercial data - GTIN:4045450000000
- Commercial data - ETIM 8.0:EC000897
- Commercial data - ETIM 7.0:EC000897
- Commercial data - eClass 10.0:27-14-11-20
- Commercial data - eClass 9.0:27-14-11-20
- Commercial data - Customs tariff number:85369010000
- Electrical data - Power Loss - Power loss, per pole (potential):0.702W
- sku_code:2006-1664
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7925/1
- CCA - DEKRA Certification B.V. - IEC 60947 - certificate 71-122840 REV.1
- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1543858
- UL - UL International Germany GmbH - UL 1059 - certificate E45172
- Electrical data - Ratings per IEC/EN - Ratings per:IEC/EN 60947-7-1
- Material data - Flammability class per UL94:V0
- Material data - Material group:I
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Railway - WAGO GmbH & Co. KG - certificate Railway Ready
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Electrical data - Ratings per UL - Approvals per:UL 1059
- Electrical data - Ratings per CSA - Approvals per:CSA 22.2 No 158
- approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA
- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- Commercial data - Country of origin:DE
- Mechanical Data - Marking level:Center/side marking
- Electrical data - Ratings per IEC/EN - Legend (ratings):(III / 3) Overvoltage category III / Pollution degree 3
- ACCESSORIES_Markingaccessories:
- 2002-121
- 2009-110
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 2009-198
- 248-501
- ACCESSORIES_Tools:210-721
- ACCESSORIES_Ferrule:
- 216-208
- 216-262
- 216-263
- 216-264
- 216-266
- 216-267
- ACCESSORIES_Assembling:
- 709-156
- 709-169
- ACCESSORIES_Check:210-136
- ACCESSORIES_Protection:2006-191
- ACCESSORIES_Jumper:
- 2006-402
- 2006-403
- 2006-404
- 2006-405
- 2006-405/011-000
- 2006-433
- 2006-434
- 2006-435
- mandatory_ACCESSORIES_Endplate:
- 2006-1691
- 2006-1692
- ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
- ACCESSORIES_ProtectiveWarningMarker:2006-115
- ACCESSORIES_Screwlessendstop:249-117
- ACCESSORIES_Plug:
- 2006-401
- 2006-401/000-050
- 2006-451
- 2006-911
- 2006-911/1000-541
- 2006-911/1000-542
- 2006-911/1000-836
- 2006-921
- 2006-921/1000-541
- 2006-921/1000-542
- 2006-921/1000-836
- 2006-921/1000-859
- 2006-931
- 2006-931/099-000
- 2006-931/1000-541
- 2006-931/1000-836
- 2006-931/1000-859
- 2006-931/1000-867
- 2006-931/1099-541
- 2006-931/1099-542

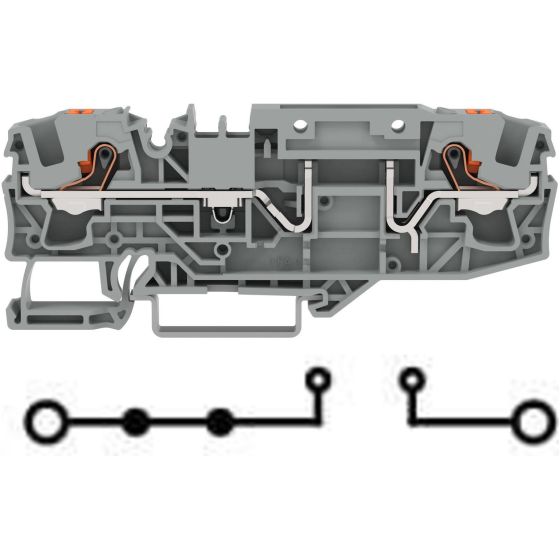

- manufacturer_description:2-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP(R); 6,00 mm2; blue
- picture_filename_1:1024-7946740-DE.jpg
- picture_zoom_filename_1:2000-7946740-DE.jpg
- Material data - Weight:16.4g
- Material data - Fire load:0.278MJ
- picture_filename_2:1024-02000019000309f9000100b6-DE.jpg
- picture_zoom_filename_2:2000-02000019000309f9000100b6-DE.jpg
- Physical data - Height:96.3 mm / 3.791 inches
- Commercial data - Product Group:22 (TOPJOB S)
- Physical data - Depth from upper-edge of DIN-rail:32.9 mm / 1.295 inches
- Electrical data - Power Loss - Resistance value for specified, current-dependent power loss:0.001Ω
- Primary brand: Wago
- Functions: Carrier neutral-through terminal block
- Design:
- 1-deck/level
- pluggable-disconnect
- Poles: 1 disconnect neutral-through pole (1N)
- Rated current:
- (IEC) 30A
- (UL) 30A
- (CSA) 30A
- Color: Blue
- Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
- Rated operating voltage (Ue):
- (IEC) 800V
- (UL) 600V
- (CSA) 600V
- Rated impulse voltage (Uimp): (IEC) 8kV
- Connection type: Push-in CAGE CLAMP spring connections
- Cross-section:
- for 0.5mm2...10mm2 fine stranded or solid conductors
- for #20AWG...#8AWG fine stranded or solid conductors
- 6mm2 nominal cross-section
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H96.3mm x W7.5mm x D32.9mm
- Net Width (mm): 7.5mm
- Material: Polyamide (PA) 66
- GTIN code: 4045450000000
- ETIM code: EC000897
- eClass code: 27-14-11-20
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 2006-1664
- Manufacturer product status: Commercialized
- Equivalent to: 20061664
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7925/1
- - CCA - DEKRA Certification B.V. - IEC 60947 - certificate 71-122840 REV.1
- - CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1543858
- - UL - UL International Germany GmbH - UL 1059 - certificate E45172
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - Railway - WAGO GmbH & Co. KG - certificate Railway Ready
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA
- - DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- RoHS compliant
- V-0 flammability rating
- Location of origin: Germany
- Cross-sells with:
- 2006-1691
- 2006-1692
- 2002-121
- 2006-115
- 2006-191
- 2006-401
- 2006-401/000-050
- 2006-402
- 2006-403
- 2006-404
- 2006-405
- 2006-405/011-000
- 2006-433
- 2006-434
- 2006-435
- 2006-451
- 2006-911
- 2006-911/1000-541
- 2006-911/1000-542
- 2006-911/1000-836
- 2006-921
- 2006-921/1000-541
- 2006-921/1000-542
- 2006-921/1000-836
- 2006-921/1000-859
- 2006-931
- 2006-931/099-000
- 2006-931/1000-541
- 2006-931/1000-836
- 2006-931/1000-859
- 2006-931/1000-867
- 2006-931/1099-541
- 2006-931/1099-542
- 2009-110
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 2009-198
- 210-112
- 210-113
- 210-114
- 210-115
- 210-136
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
- 210-721
- 216-208
- 216-262
- 216-263
- 216-264
- 216-266
- 216-267
- 248-501
- 249-117
- 709-156
- 709-169
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Carrier neutral-through terminal block - 1-deck/level - Wago (TOPJOB S series)
| Main function | Terminal |
|---|---|
| Product series / family name | 2006 series |
| Sub-range name | TOPJOB S series |
| Poles | 1N |
| Rated current | 25A < In ≤ 30A |
| Connection capacity | 2-wires (1+1) |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 0.5mm2, 10mm2, 6mm2 |
| Cross-section (AWG) | 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, 8 AWG, 9 AWG |
| Mounting mode | DIN rail, DIN rail (NS 35/7.5) |
| Dimensions (mm) | W7...7.62mm |
| Type - Conductor insertion and removal | push-in, with tool |
| Type - Decks | 1 |
| Type - Terminal | neutral-through |
| Type - Option | disconnect (pluggable module) |
