Wago - 283-908

$13.62

Wago - 283-908 is available to buy in increments of 1

Overview

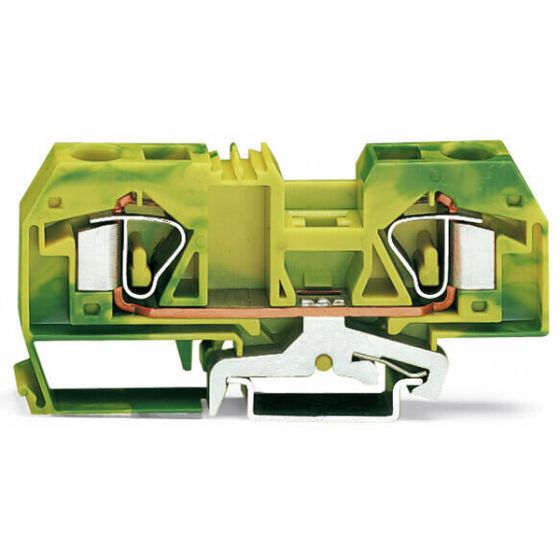

2-conductor shield terminal block; 16 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm²; white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Connection data - Number of levels:1
Connection data - Connection 1 - Actuation type:Operating tool
Connection data - Connection 1 - Wiring direction:Front-entry wiring
Mechanical Data - Design:horizontal type
Connection data - Total number of potentials:1
Electrical data - Ratings per IEC/EN - Rated current:76A
Material data - Color:white
Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):800V
Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):8kV
Connection data - Connection 1 - Connection technology:CAGE CLAMP^(R)
Connection data - Connection 1 - Solid conductor:0.2 ... 16 mm2 / 24 ... 6 AWG
Connection data - Connection 1 - Fine-stranded conductor:0.2 ... 16 mm2 / 24 ... 6 AWG
Mechanical Data - Mounting type:DIN-35 rail
Physical data - Width:12 mm / 0.472 inches
Material data - Note (material data):
Information on material specifications can be found here
Material data - Insulation material:Polyamide (PA66)
Connection data - Connection 1 - Connectable conductor materials:Copper
Environmental requirements - Processing temperature:-35 ... +85 °C
Environmental requirements - Continuous operating temperature:-60 ... +105 °C
Commercial data - GTIN:4045450000000
Commercial data - ETIM 8.0:EC000901
Commercial data - ETIM 7.0:EC000901
Commercial data - eClass 10.0:27-14-11-41
Commercial data - eClass 9.0:27-14-11-41
Commercial data - Customs tariff number:85369010000
sku_code:283-908
Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
Electrical data - Ratings per IEC/EN - Ratings per:IEC/EN 60947-7-2
Material data - Flammability class per UL94:V0
Material data - Material group:I
Environmental Product Compliance - RoHS Exemption:
- 7(a)
- 7(c)-I
- 7(c)-II
Commercial data - Country of origin:DE
Mechanical Data - Marking level:Center marking
ACCESSORIES_Markingaccessories:
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 249-105
- 793-501
- 793-501/000-002
- 793-501/000-005
- 793-501/000-006
- 793-501/000-007
- 793-501/000-012
- 793-501/000-017
- 793-501/000-023
- 793-501/000-024
- 793-5501
- 793-5501/000-002
ACCESSORIES_Tools:210-721
ACCESSORIES_Ferrule:
- 216-108
- 216-109
- 216-286
- 216-287
- 216-288
- 216-289
ACCESSORIES_Assembling:
- 209-106
- 249-116
- 709-154
- 709-168
ACCESSORIES_Check:283-404
ACCESSORIES_Protection:283-400
ACCESSORIES_Jumper:
- 283-402
- 283-409
- 283-422
- 285-435
mandatory_ACCESSORIES_Endplate:
- 283-325
- 283-328
ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
ACCESSORIES_ProtectiveWarningMarker:283-415
ACCESSORIES_Power_tap:283-407
manufacturer_description:2-conductor shield terminal block; 16 mm2; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP(R); 16,00 mm2; white
Material data - Weight:46.6g
Material data - Fire load:0.502MJ
Physical data - Height:94.5 mm / 3.72 inches
Physical data - Depth from upper-edge of DIN-rail:37.5 mm / 1.476 inches
Primary brand: Wago
Functions: Shield terminal block
Design:
- 1-deck/level
- center marking slot
Poles: 1 shield-through pole (1S)
Color: White
Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
Connection type: CAGE CLAMP spring connections
Cross-section:
- for 0.2mm2...16mm2 fine stranded or solid conductors
- for #24AWG...#6AWG fine stranded or solid conductors
Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
Dimensions: H94.5mm x W12mm x D37.5mm
Net Width (mm): 12mm
Material: Polyamide (PA) 66
GTIN code: 4045450000000
ETIM code: EC000901
eClass code: 27-14-11-41
Customs Tariff Number: 85369010000
Order code / Manufacturer SKU: 283-908
Manufacturer product status: Commercialized
Equivalent to: 283908
EAN code: 4045450000000
Compliant with standard(s):
- RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
- V-0 flammability rating
Location of origin: Germany
Cross-sells with:
- 283-325
- 283-328
- 2009-115
- 2009-115/000-002
- 2009-115/000-006
- 2009-115/000-007
- 2009-115/000-012
- 2009-115/000-017
- 2009-115/000-023
- 2009-115/000-024
- 209-106
- 210-112
- 210-113
- 210-114
- 210-115
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
- 210-721
- 216-108
- 216-109
- 216-286
- 216-287
- 216-288
- 216-289
- 249-105
- 249-116
- 283-400
- 283-402
- 283-404
- 283-407
- 283-409
- 283-415
- 283-422
- 285-435
- 709-154
- 709-168
- 793-501
- 793-501/000-002
- 793-501/000-005
- 793-501/000-006
- 793-501/000-007
- 793-501/000-012
- 793-501/000-017
- 793-501/000-023
- 793-501/000-024
- 793-5501
- 793-5501/000-002
Level 1 category: Electrical components
Level 2 category: Terminal blocks
Product title: Shield terminal block - 1-deck/level - Wago

More Information

More Information
Main function	Terminal
Product series / family name	283 series
Poles	1S
Connection capacity	2-wires (1+1)
Connection type (electrical)	Terminals (Spring)
Cross-section (mm2)	0.2mm2, 10mm2, 16mm2, 6mm2
Cross-section (AWG)	10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG
Mounting mode	DIN rail, DIN rail (NS 35/7.5)
Dimensions (mm)	W12...12.5mm
Type - Conductor insertion and removal	with tool
Type - Decks	1
Type - Terminal	shield-through
Type - Option	special version (with center marking slot)
