- Connection data - Number of levels:1
- Connection data - Connection 1 - Actuation type:Push-button
- Connection data - Connection 1 - Wiring direction:Side-entry wiring
- Mechanical Data - Design:horizontal type
- Connection data - Total number of potentials:7
- Connection data - Connection 1 - Pole number:7
- Electrical data - Ratings per IEC/EN - Rated current:24A
- Electrical data - Ratings per UL - Rated current UL (Use Group B):15A
- Electrical data - Ratings per UL - Rated current UL (Use Group D):5A
- Electrical data - Ratings per CSA - Rated current CSA (Use Group D):5A
- Electrical data - Ratings per UL - Rated current UL (Use Group C):15A
- Electrical data - Ratings per CSA - Rated current CSA (Use Group C):10A
- Material data - Color:gray
- Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):500V
- Electrical data - Ratings per UL - Rated voltage UL (Use Group B):300V
- Electrical data - Ratings per UL - Rated voltage UL (Use Group D):600V
- Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D):600V
- Electrical data - Ratings per UL - Rated voltage UL (Use Group C):300V
- Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C):300V
- Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):6kV
- Connection data - Connection 1 - Connection technology:CAGE CLAMP(R)
- Connection data - Connection 1 - Solid conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
- Connection data - Connection 1 - Fine-stranded conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
- Mechanical Data - Mounting type:Snap-in foot
- Physical data - Width:73 mm / 2.874 inches
- Physical data - Module width:10 mm / 0.394 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polyamide (PA66)
- Material data - Halogen-free:Yes
- Connection data - Connection 1 - Connectable conductor materials:Copper
- Commercial data - GTIN:4045450000000
- Commercial data - ETIM 8.0:EC001284
- Commercial data - ETIM 7.0:EC001284
- Commercial data - eClass 10.0:27-14-11-06
- Commercial data - eClass 9.0:27-14-11-06
- Commercial data - Customs tariff number:85369010000
- sku_code:261-257/342-000
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60998 - certificate 2110272.02
- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR-NL 6509
- Material data - Flammability class per UL94:V0
- Material data - Material group:I
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Electrical data - Ratings per UL - Approvals per:UL 1059
- Electrical data - Ratings per CSA - Approvals per:CSA 22.2 No 158
- approvals_Approvals for marine applications:ABS - American Bureau of Shipping - certificate 19-HG1869868-PDA
- Commercial data - Country of origin:DE
- Mechanical Data - Marking level:Side marking
- Electrical data - Ratings per IEC/EN - Legend (ratings):(III / 3) Overvoltage category III / Pollution degree 3
- ACCESSORIES_Markingaccessories:210-833
- ACCESSORIES_Tools:
- 210-657
- 210-658
- 210-720
- ACCESSORIES_Ferrule:
- 216-101
- 216-102
- 216-103
- 216-104
- 216-106
- 216-121
- 216-122
- 216-123
- 216-124
- 216-131
- 216-132
- 216-151
- 216-152
- 216-201
- 216-202
- 216-203
- 216-204
- 216-205
- 216-206
- 216-221
- ACCESSORIES_Assembling:
- 209-120
- 209-137
- ACCESSORIES_Jumper:261-402
- ACCESSORIES_Carrierrail:210-154

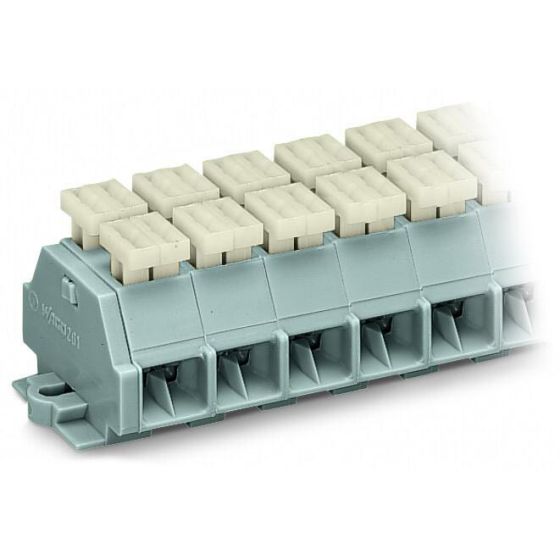

- manufacturer_description:4-conductor terminal strip; on both sides with push-buttons; with snap-in mounting feet; 7-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm diamater; 2.5 mm2; CAGE CLAMP(R); 2,50 mm2; gray
- picture_filename_1:1024-0200000500001933000100b6-DE.jpg
- picture_zoom_filename_1:2000-0200000500001933000100b6-DE.jpg
- Material data - Weight:33.2g
- Material data - Fire load:0.777MJ
- Physical data - Depth:28.1 mm / 1.106 inches
- Physical data - Height from the surface:23.3 mm / 0.917 inches
- Primary brand: Wago
- Functions: Feed-through/thru terminal strip
- Design:
- 1-deck/level
- btn. on both sides
- snap-in mounting feet
- Poles: 7 feed-through poles (7P)
- Rated current: (IEC) 24A
- Color: Gray
- Connection capacity: 28-wires (14 clamps + 14 clamps) (14+14)
- Rated operating voltage (Ue):
- (IEC) 500V
- (UL) 300V
- (CSA) 300V
- Rated impulse voltage (Uimp): (IEC) 6kV
- Connection type: CAGE CLAMP spring connections
- Cross-section:
- for 0.08mm2...2.5mm2 fine stranded or solid conductors
- for #28AWG...#14AWG fine stranded or solid conductors
- Mounting mode: Mounts on DIN rail or surface via accessory snap-in foot
- Dimensions: H23.3mm x W73mm x D28.1mm
- Material:
- Polyamide (PA) 66
- Halogen-free materials
- GTIN code: 4045450000000
- ETIM code: EC001284
- eClass code: 27-14-11-06
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 261-257/342-000
- Manufacturer product status: Commercialized
- Equivalent to: 261257000000
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60998 - certificate 2110272.02
- - CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR-NL 6509
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - certificate 19-HG1869868-PDA
- RoHS compliant
- V-0 flammability rating
- Location of origin: Germany
- Cross-sells with:
- 209-120
- 209-137
- 210-154
- 210-657
- 210-658
- 210-720
- 210-833
- 216-101
- 216-102
- 216-103
- 216-104
- 216-106
- 216-121
- 216-122
- 216-123
- 216-124
- 216-131
- 216-132
- 216-151
- 216-152
- 216-201
- 216-202
- 216-203
- 216-204
- 216-205
- 216-206
- 216-221
- 261-402
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Feed-through/thru terminal strip - 1-deck/level - Wago
| Main function | Terminal strip |
|---|---|
| Product series / family name | 261 series |
| Poles | 7P |
| Rated current | 20A < In ≤ 25A |
| Connection capacity | 28-wires (14+14) |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 0.08mm2, 2.5mm2 |
| Cross-section (AWG) | 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG, 25 AWG, 26 AWG, 27 AWG, 28 AWG |
| Mounting mode | DIN rail, Surface |
| Type - Conductor insertion and removal | with push-button |
| Type - Terminal | feed-through |
| Type - Option | special version (snap-in mounting) |
