- Connection data - Connection 1 - Actuation type:Lever
- Electrical data - Ratings per IEC/EN - Rated current:32A
- Electrical data - Ratings per UL - Rated current UL (Use Group C):20A
- Material data - Color:transparent
- Material data - Actuator color:orange
- Material data - Cover color:transparent
- Electrical data - Ratings per IEC/EN - Nominal voltage (II/2):450V
- Electrical data - Ratings per UL - Rated voltage UL (Use Group C):600V
- Electrical data - Ratings per IEC/EN - Rated surge voltage (II/2):4kV
- Connection data - Connection 1 - Connection technology:CAGE CLAMP(R)
- Connection data - Connection 1 - Solid conductor:0.2 ... 4 mm2 / 20 ... 14 AWG
- Connection data - Connection 1 - Fine-stranded conductor:0.2 ... 4 mm2 / 18 ... 14 AWG
- Connection data - Connection 1 - Stranded conductor:0.2 ... 2.5 mm2 / 18 ... 14 AWG
- Physical data - Width:8.1 mm / 0.319 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polycarbonate (PC)
- Connection data - Connection 1 - Connectable conductor materials:Copper
- Environmental requirements - Continuous operating temperature:-60 ... +105 °C
- Commercial data - GTIN:4066970000000
- Commercial data - ETIM 8.0:EC000446
- Commercial data - ETIM 7.0:EC000446
- Commercial data - Customs tariff number:85369010000
- sku_code:221-2411
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7990
- cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate UL-CA-L69654
- ENEC 05 - DEKRA Certification B.V. - EN 60998 - certificate 71-127529
- Electrical data - Ratings per IEC/EN - Ratings per:EN 60664
- Material data - Flammability class per UL94:V2
- Material data - Material group:IIIa
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- approvals_Approvals for marine applications:LR - Lloyds Register - EN 60998 - certificate LR22207029TA
- Commercial data - Country of origin:CH
- Electrical data - Ratings per IEC/EN - Legend (ratings):(II / 2) Overvoltage category II / Pollution degree 2
- ACCESSORIES_Markingaccessories:210-834
- ACCESSORIES_Assembling:
- 209-1115
- 209-1116
- 209-120
- 209-123
- 221-2501
- 221-2502
- 221-2503
- 221-2504
- 221-2505
- 221-2511
- 221-2512
- 221-2513
- 221-2514
- 221-2515
- 221-2521
- 221-2522
- 221-2523
- 221-2524
- 221-2525
- 221-2531
- ACCESSORIES_Generalaccessories:
- 207-1372
- 207-1373
- 207-1375

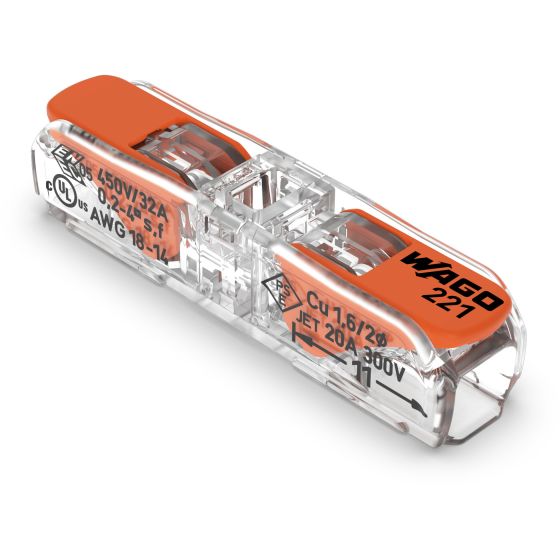

- manufacturer_description:Inline splicing connector with levers; for all conductor types; max. 4 mm2; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm2; transparent
- picture_filename_1:1024-2759304-DE.jpg
- picture_zoom_filename_1:2000-2759304-DE.jpg
- Material data - Weight:2.3g
- Material data - Fire load:0.057MJ
- picture_filename_2:1024-5546017-DE.jpg
- picture_zoom_filename_2:2000-5546017-DE.jpg
- Physical data - Height:8.9 mm / 0.35 inches
- manufacturer_detailed_description:
This connector is suitable for worldwide installations.
- Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm2 (24â€"16 AWG)
- Slim design saves space in tight areas
- Tool-free connection and disconnection thanks to convenient lever technology
- Use a mounting carrier for fixed and multi-pole wiring
- Physical data - Depth:35.5 mm / 1.398 inches
- Material data - Weight of insulation material:0.84g
- Primary brand: Wago
- Functions: In-line splicing connector with levers
- Rated current:
- (IEC) 32A
- (UL) 20A
- Color:
- Transparent housing
- Orange lever
- Rated operating voltage (Ue):
- (IEC) 450V
- (UL) 600V
- Connection type: CAGE CLAMP spring connections
- Cross-section:
- for 0.2mm2...4mm2 fine stranded conductors
- for 0.2mm2...2.5mm2 stranded conductors
- for 0.2mm2...4mm2 solid conductors
- for #18AWG...#14AWG fine stranded or stranded conductors
- for #20AWG...#14AWG solid conductors
- Material: Polycarbonate (PC)
- Ambient air temperature for operation: -60°C...+105°C
- GTIN code: 4066970000000
- ETIM code: EC000446
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 221-2411
- Manufacturer product status: Commercialized
- Equivalent to: 2212411
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7990
- - cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate UL-CA-L69654
- - ENEC 05 - DEKRA Certification B.V. - EN 60998 - certificate 71-127529
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - LR - Lloyds Register - EN 60998 - certificate LR22207029TA
- RoHS compliant
- V-2 flammability rating
- Benefits:
- Slim design minimizes dimensions for installation in tight spaces
- Tool-free connection and disconnection thanks to convenient lever technology
- Choosing between fixed-position installation and multi-pole installation with an adapter
- Location of origin: Switzerland
- Cross-sells with:
- 207-1372
- 207-1373
- 207-1375
- 209-1115
- 209-1116
- 209-120
- 209-123
- 210-834
- 221-2501
- 221-2502
- 221-2503
- 221-2504
- 221-2505
- 221-2511
- 221-2512
- 221-2513
- 221-2514
- 221-2515
- 221-2521
- 221-2522
- 221-2523
- 221-2524
- 221-2525
- 221-2531
- Level 1 category: Cabling systems
- Level 2 category: Connectors & Inserts
- Product title: In-line splicing connector with levers - Wago
| Main function | Connector (Splicing) |
|---|---|
| Product series / family name | 221 series |
| Rated current | 30A < In ≤ 35A |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 0.2mm2, 4mm2 |
| Cross-section (AWG) | 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG |
| Type - Option | Standard (No options) |
