- Primary brand: Wago
- Functions: Component feed-through/thru terminal block
- Design:
- 2-decks/levels (double-deck)
- 2 diodes (1N4007)
- Poles: 1 feed-through + 1 disconnect feed-through poles (2P)
- Color: Gray
- Connection capacity: 2 x 2-wires (2 push-in + 2 push-in) (2+2)
- Connection type: Push-in CAGE CLAMP spring connections
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H69.7mm x W5.2mm x D69.7mm
- Net Width (mm): 5.2mm
- Order code / Manufacturer SKU: 2002-2214/1000-980
- Manufacturer product status: Commercialized
- Equivalent to: 200222000000000
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks

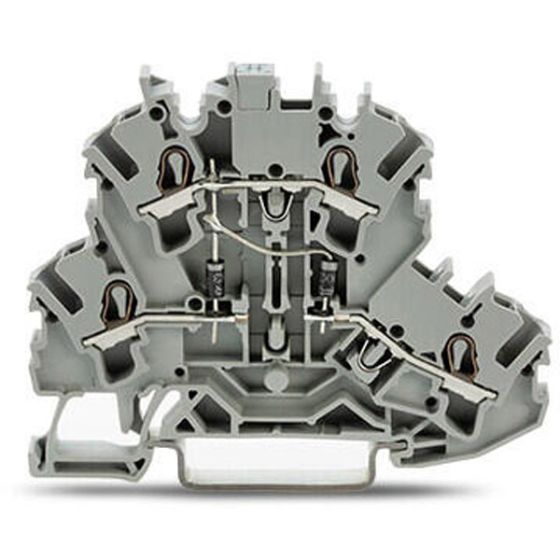

- Product title: Component feed-through/thru terminal block - 2-decks/levels (double-deck) - Wago (TOPJOB S series)
| Main function | Terminal |
|---|---|
| Product series / family name | 2002 series |
| Sub-range name | TOPJOB S series |
| Poles | 2P |
| Connection capacity | 4-wires (2+2) |
| Connection type (electrical) | Terminals (Spring) |
| Mounting mode | DIN rail, DIN rail (NS 35/7.5) |
| Dimensions (mm) | W5...5.2mm |
| Type - Conductor insertion and removal | push-in, with tool |
| Type - Decks | 2 |
| Type - Terminal | feed-through |
| Type - Option | with diode(s), with diode(s) (1N4007) |
