- Connection data - Connection 1 - Actuation type:Push-in
- Connection data - Total number of potentials:2
- Connection data - Connection 1 - Pole number:2
- Electrical data - Ratings per IEC/EN - Rated current:6A
- Electrical data - Ratings per UL - Rated current (UL):A
- Material data - Color:yellow
- Electrical data - Ratings per IEC/EN - Nominal voltage (II/2):400V
- Electrical data - Ratings per UL - Rated voltage (UL):V
- Electrical data - Ratings per IEC/EN - Rated surge voltage (II/2):4kV
- Connection data - Connection 1 - Connection technology:PUSH WIRE(R)
- Connection data - Connection 1 - Connection type 1:Plug
- Connection data - Connection 2 - Connection type 2:Socket
- Connection data - Connection 1 - Solid conductor:18 ... 12 AWG
- Connection data - Connection 1 - Stranded conductor:16 ... 12 AWG
- Connection data - Connection 2 - Solid conductor 2:18 AWG
- Physical data - Width:13 mm / 0.512 inches
- Material data - Note (material data):
Information on material specifications can be found here - Connection data - Connection 1 - Connectable conductor materials:Copper
- Commercial data - GTIN:4045450000000
- Commercial data - ETIM 8.0:EC000458
- Commercial data - ETIM 7.0:EC000458
- Commercial data - eClass 10.0:27-44-03-14
- Commercial data - eClass 9.0:27-44-03-14
- Commercial data - Customs tariff number:85366990990
- sku_code:873-902
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 61984 - certificate NTR NL-7390
- CCA - DEKRA Certification B.V. - EN 61984 - certificate 2178521.01
- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7391
- CCA - DEKRA Certification B.V. - EN 60998 - certificate 71-114174
- CSA - DEKRA Certification B.V. - C22.2 No. 182.3 - certificate 1961671
- UL - UL International Germany GmbH - UL 2459 - certificate E313353
- Electrical data - Ratings per IEC/EN - Ratings per:EN 60998
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Electrical data - Ratings per IEC/EN 2 - Ratings per 2:EN 61984
- Commercial data - Country of origin:CN

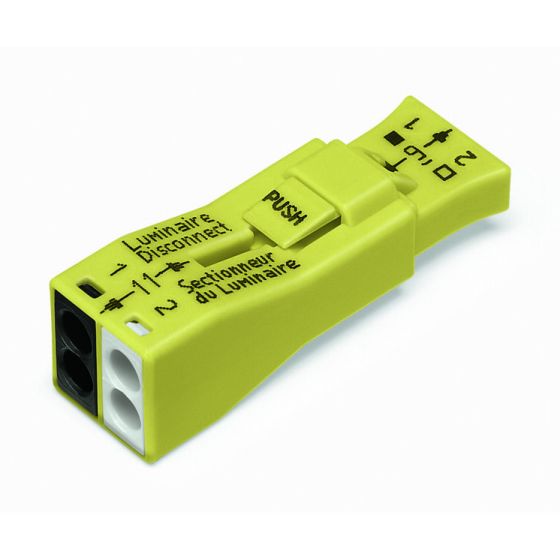

- manufacturer_description:Luminaire disconnect connector; 2-pole; 4,00 mm2; yellow
- picture_filename_1:1024-0200000300009085000200b6-DE.jpg
- picture_zoom_filename_1:2000-0200000300009085000200b6-DE.jpg
- Material data - Weight:4.8g
- Material data - Fire load:0.103MJ
- picture_filename_2:1024-0200001b0002a86b000100b6-DE.jpg
- picture_zoom_filename_2:2000-0200001b0002a86b000100b6-DE.jpg
- Physical data - Height:13.2 mm / 0.52 inches
- Physical data - Depth:42 mm / 1.654 inches
- Commercial data - Product Group:8 (Misc. Chassis Mount Blocks)
- Primary brand: Wago
- Functions: Lighting connector
- Design: for connection to luminaire
- Poles: 2-poles (2P)
- Rated current: 6A
- Color:
- Yellow housing
- Black / White inserts
- Rated operating voltage (Ue): (IEC) 400V
- Connection type: PUSH WIRE spring connections
- Cross-section:
- for 0.75mm2...4mm2 stranded conductors
- for 0.75mm2...4mm2 solid conductors
- for #18AWG...#12AWG (solid)
- Dimensions: H13.2mm x W13mm x D42mm
- GTIN code: 4045450000000
- ETIM code: EC000458
- eClass code: 27-44-03-14
- Customs Tariff Number: 85366990990
- Order code / Manufacturer SKU: 873-902
- Manufacturer product status: Commercialized
- Equivalent to: 873902
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 61984 - certificate NTR NL-7390
- - CCA - DEKRA Certification B.V. - EN 61984 - certificate 2178521.01
- - CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7391
- - CCA - DEKRA Certification B.V. - EN 60998 - certificate 71-114174
- - CSA - DEKRA Certification B.V. - C22.2 No. 182.3 - certificate 1961671
- - UL - UL International Germany GmbH - UL 2459 - certificate E313353
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- RoHS compliant
- Location of origin: China
- Level 1 category: Cabling systems
- Level 2 category: Connectors & Inserts
- Product title: Lighting connector - Wago
| Main function | Connector |
|---|---|
| Product series / family name | 873 series |
| Poles | 2P |
| Rated current | 5A < In ≤ 10A |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 0.75mm2, 4mm2 |
| Cross-section (AWG) | 12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG |
| Type - Conductor insertion and removal | push-in |
| Type - Option | Standard (No options) |
