- Environmental requirements - Temperature marking per EN 60998:T60
- Connection data - Connection 1 - Actuation type:Push-in
- Connection data - Connection 1 - Wiring direction:Side-entry wiring
- Connection data - Total number of potentials:1
- Electrical data - Ratings per IEC/EN - Rated current:24A
- Electrical data - Ratings per UL - Rated current (UL):20A
- Material data - Color:transparent
- Material data - Cover color:orange
- Electrical data - Ratings per IEC/EN - Nominal voltage (II/2):450V
- Electrical data - Ratings per UL - Rated voltage (UL):600V
- Electrical data - Ratings per IEC/EN - Rated surge voltage (II/2):4kV
- Connection data - Connection 1 - Connection technology:PUSH WIRE(R)
- Connection data - Connection 1 - Solid conductor:0.5 ... 2.5 mm2 / 20 ... 16 AWG
- Physical data - Width:14 mm / 0.551 inches
- Material data - Note (material data):
Information on material specifications can be found here - Connection data - Connection 1 - Connectable conductor materials:
- Copper
- Aluminum
- Connection data - Connection 1 - Connectable conductor materials (note):Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus" Contact Paste 249-130 is used for termination.
“Alu-Plus" Contact Paste Advantages:- Automatically destroys the oxide film during clamping.
- Prevents fresh oxidation at the clamping point.
- Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
- Provides long-term protection against corrosion.
For spring clamp connections with PUSH WIRE(R) connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus" contact paste.
It is also possible to apply WAGO “Alu-Plus" additionally on the whole surface of the aluminum conductor before termination.
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::
2.5 mm2 = 16 A
4 mm2 = 22 A - Environmental requirements - Continuous operating temperature:105 °C
- Environmental requirements - Ambient temperature (operation):+60 °C
- Commercial data - GTIN:4050820000000
- Commercial data - ETIM 8.0:EC000446
- Commercial data - ETIM 7.0:EC000446
- Commercial data - eClass 10.0:27-14-11-04
- Commercial data - eClass 9.0:27-14-11-04
- Commercial data - Customs tariff number:85369010000
- sku_code:2273-203
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate E69654
- VDE - VDE Pruf- und Zertifizierungsinstitut - EN 60998 - certificate 40029794
- Electrical data - Ratings per IEC/EN - Ratings per:IEC/EN 60998
- Material data - Flammability class per UL94:V2
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Electrical data - Ratings per UL - Approvals per:UL 486C
- approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - certificate 15-HG1419918-PDA
- DNV GL - Det Norske Veritas Germanischer Lloyd - EN 60998 - certificate TAE000015T
- LR - Lloyds Register - EN 60998 - certificate LR22207029TA
- Notes - Safety information:in grounded power lines
- Commercial data - Country of origin:DE
- Electrical data - Ratings per IEC/EN - Legend (ratings):(II / 2) Overvoltage category II / Pollution degree 2
- ACCESSORIES_Tools:249-130
- ACCESSORIES_Mountingadapter:2273-500
- ACCESSORIES_Generalaccessories:207-1332

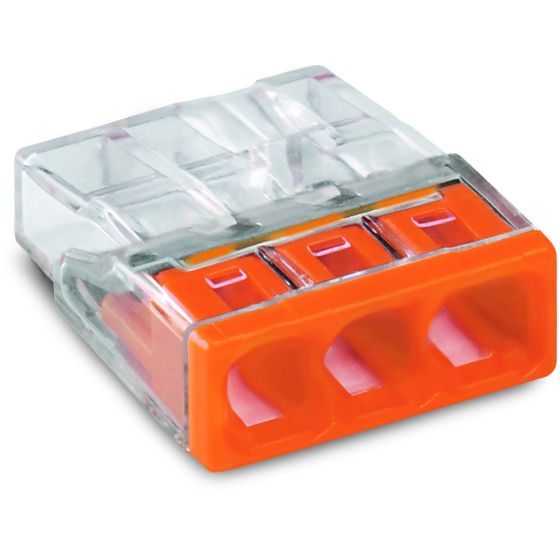

- manufacturer_description:PUSH WIRE(R) splicing connector; for solid conductors; max. 2.5 mm2; 3-conductor; transparent housing; orange cover; Surrounding air temperature: max 60°C (T60); 2,50 mm2; transparent
- picture_filename_1:1024-0200000300001f8d000200b6-DE.jpg
- picture_zoom_filename_1:2000-0200000300001f8d000200b6-DE.jpg
- Material data - Weight:1g
- Material data - Fire load:0.019MJ
- picture_filename_2:1024-0200000d00029162000200b6-DE.jpg
- picture_zoom_filename_2:2000-0200000d00029162000200b6-DE.jpg
- Physical data - Height:5.8 mm / 0.228 inches
- manufacturer_detailed_description:Advantages:
- Convenient wiring via extremely compact design
- Push-in termination of up to eight solid conductors
- Cross-section range: 0.5 ... 2.5 mm2
- Any combination of conductor sizes is possible
- PUSH WIRE(R) connection terminates solid (“s") copper conductors
- Physical data - Depth:16.7 mm / 0.657 inches
- Commercial data - Product Group:7 (Push Wire Conn.)
- Primary brand: Wago
- Functions: 3-wire splicing connector
- Rated current: (IEC) 24A
- Color:
- Transparent housing
- Orange cover
- Rated operating voltage (Ue): (IEC) 450V
- Connection type: PUSH WIRE spring connections
- Cross-section:
- for 0.5mm2...2.5mm2 solid conductors
- for #20AWG...#16AWG solid conductors
- Dimensions: H5.8mm x W14mm x D16.7mm
- Ambient air temperature for operation: +60°C
- GTIN code: 4050820000000
- ETIM code: EC000446
- eClass code: 27-14-11-04
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 2273-203
- Manufacturer product status: Commercialized
- Equivalent to: 2273203
- Compliant with standard(s):
- General approvals
- - cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate E69654
- - VDE - VDE Pruf- und Zertifizierungsinstitut - EN 60998 - certificate 40029794
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - certificate 15-HG1419918-PDA
- - DNV GL - Det Norske Veritas Germanischer Lloyd - EN 60998 - certificate TAE000015T
- - LR - Lloyds Register - EN 60998 - certificate LR22207029TA
- RoHS compliant
- V-2 flammability rating
- Location of origin: Germany
- Cross-sells with:
- 207-1332
- 2273-500
- 249-130
- Level 1 category: Cabling systems
- Level 2 category: Connectors & Inserts
- Product title: 3-wire splicing connector - Wago
| Main function | Connector (Splicing) |
|---|---|
| Product series / family name | 2273 series |
| Rated current | 20A < In ≤ 25A |
| Connection type (electrical) | Terminals (Spring) |
| Cross-section (mm2) | 0.5mm2, 2.5mm2 |
| Cross-section (AWG) | 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG |
| Type - Option | Standard (No options) |
