Wago - 706-753/300-100
$67.16
Wago - 706-753/300-100 is available to buy in increments of 1
Overview

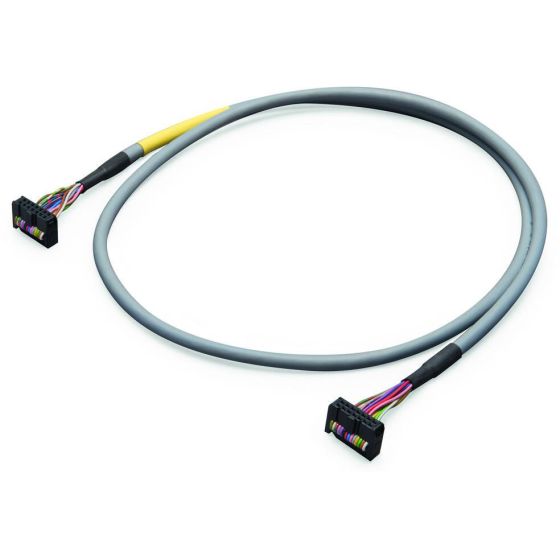

Connection cable; 14-pole; Pluggable connector per DIN 41651; 14-pole; Pluggable connector per DIN 41651; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm²
- Connection data - Connection 2 - Pole number 2:14
- Connection data - Connection 1 - Pole number 1:14
- Electrical data - Current per wire (max.):1A
- Electrical data - Operating voltage:≤35 VDC
- Connection data - Connection 1 - Connection type 1:System
- Connection data - Connection 2 - Connection type 2:System
- Connection data - Connection 1 - Connector:Pluggable connector per DIN 41651; female connector
- Connection data - Cable type:LiYY
- Physical data - Cable length:1m
- Environmental requirements - Ambient temperature (operation):-25 ... +70 °C
- Commercial data - GTIN:4050820000000
- Commercial data - ETIM 8.0:EC001855
- Commercial data - ETIM 7.0:EC001855
- Commercial data - eClass 10.0:27-06-03-11
- Commercial data - eClass 9.0:27-06-03-11
- Commercial data - Customs tariff number:85444290900
- sku_code:706-753/300-100
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- Commercial data - Country of origin:FR
- ACCESSORIES_TransferModule:
- 857-981
- 857-982
- manufacturer_description:Connection cable; 14-pole; Pluggable connector per DIN 41651; 14-pole; Pluggable connector per DIN 41651; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm2
- picture_filename_1:1024-0200000e00009d64000100b6-DE.jpg
- picture_zoom_filename_1:2000-0200000e00009d64000100b6-DE.jpg
- Material data - Weight:59g
- picture_filename_2:1024-0200000e0001daa7000100b6-EN.jpg
- picture_zoom_filename_2:2000-0200000e0001daa7000100b6-EN.jpg
- manufacturer_detailed_description:
Short description:
WAGO's 14-pole interface cables transmit the signal one-to-one from the 14-pole connector and are available in 1-, 2- and 3-meter lengths.
These cables are suitable for system wiring when paired with 857-981 and 857-982 Interface Adapters.
- Commercial data - Product Group:30 (WAGO France)
- picture_filename_3:1024-7115485-EN.jpg
- picture_zoom_filename_3:2000-7115485-EN.jpg
- Primary brand: Wago
- Functions: System cable
- Poles: 14-poles (14P)
- Rated current: 1A per conductor
- Connection type: DIN 41651 14-pin female connector x 2
- Cross-section: 0.14mm2
- Length: 1m
- Ambient air temperature for operation: -25°C...+70°C
- GTIN code: 4050820000000
- ETIM code: EC001855
- eClass code: 27-06-03-11
- Customs Tariff Number: 85444290900
- Order code / Manufacturer SKU: 706-753/300-100
- Manufacturer product status: Commercialized
- Equivalent to: 706753000000
- EAN code: 4050820000000
- Compliant with standard(s): RoHS compliant
- Location of origin: France
- Cross-sells with:
- 857-981
- 857-982
- Level 1 category: Cabling systems
- Level 2 category: Data cables
- Level 3 category: Automation cables
- Product title: System cable - Wago
| Main function | Cable |
|---|---|
| Product series / family name | 706 series |
| Poles | 14P |
| Rated current | 1A < In ≤ 5A |
| Electrical connection gender | Female |
| Electrical connection pinout | 14-pin |
| Cable length (m) | 1m ≤ L < 2m |
| Degree of protection | IP20 |
| Type - Option | Standard (No options) |
