Wago - 857-450

$295.20

Wago - 857-450 is available to buy in increments of 1

Overview

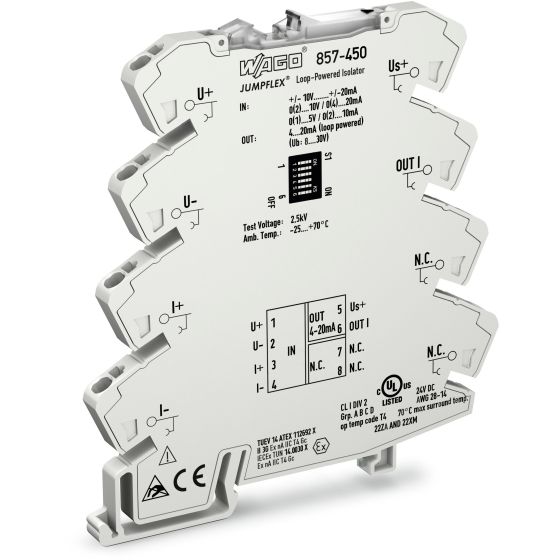

Loop-powered isolation amplifier; Bipolar current and voltage input signal; Current output signal; Configuration via DIP switch; Power via input; 6 mm module width; 2,50 mm²

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical data - Configuration - Configuration options:DIP switch
Environmental requirements - Operating altitude (max.):2000m
Technical data - Power supply - Power supply type:Loop-powered (via output)
Technical data - Power supply - Supply voltage:DC 8 ... 30 V (Power is derived from the output circuit.)
Technical data - Signal processing - Limit frequency:100 Hz / 30 Hz (configurable via DIP switch)
Connection data - Connection technology:Push-in CAGE CLAMP^(R)
Connection data - Solid conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
Connection data - Fine-stranded conductor:0.34 ... 2.5 mm2 / 22 ... 14 AWG
Mechanical Data - Mounting type:DIN-35 rail
Technical data - Input - Input signal type:
- Voltage
- Current
Technical data - Input - Input signal (current):Â+/-5 mA; 0 ... 5 mA; Â+/-10 mA; 0 ... 10 mA; 2 ... 10 mA; Â+/-20 mA; 0 ... 20 mA; 4 ... 20 mA
Technical data - Input - Input signal (voltage):Â+/-1 V; 0 ... 1 V; Â+/-2 V; 0 ... 2 V; Â+/-5 V; 0 ... 5 V; 1 ... 5 V; Â+/-10 V; 0 ... 10 V; 2 ... 10 V; Â+/-20 V; 0 ... 20 V
Technical data - Input - Input resistance (current input):≤ 50 Ω
Technical data - Input - Input resistance (voltage input):≥ 1 Mâ„¦
Technical data - Input - Input voltage (max.):30 V
Technical data - Output (analog) - Output signal type:Current
Technical data - Measurement error - Temperature coefficient:≤ 0.01 %/K
Technical data - Measurement error - Transmission error (typ.):≤ 0.1 % of upper-range value
Physical data - Width:6 mm / 0.236 inches
Environmental requirements - Ambient temperature (operation):-25 ... +70 °C
Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
Environmental requirements - Relative humidity:5 ... 95 % (no condensation permissible)
Technical data - Input - Input current (max.):50 mA
Commercial data - GTIN:4045450000000
Commercial data - ETIM 8.0:EC002653
Commercial data - ETIM 7.0:EC002653
Commercial data - eClass 10.0:27-21-01-20
Commercial data - eClass 9.0:27-21-01-20
Commercial data - Customs tariff number:85437090300
sku_code:857-450
Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
approvals_General approvals:UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4
approvals_Declarations of conformity and manufacturer's declarations:EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
Environmental Product Compliance - RoHS Exemption:
- 6(c)
- 7(a)
- 7(c)-I
- 7(c)-II
approvals_Approvals for hazardous areas:
- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000210 (Ex ec IIC T4 Gc)
- IECEx - TUEV Nord Cert GmbH - certificate IECEX TUN14.0030X
- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX004X
- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726
Standards and specifications - Conformity marking:CE
Standards and specifications - EMC emission of interference:EN 61000-6-3
Standards and specifications - EMC immunity to interference:EN 61000-6-2
Commercial data - Country of origin:DE
ACCESSORIES_Markingaccessories:
- 2009-110
- 2009-115
- 793-501
- 793-502
- 793-503
- 793-504
- 793-505
- 793-506
- 793-5501
- 793-566
ACCESSORIES_Tools:210-720
ACCESSORIES_Assembling:
- 249-116
- 249-117
- 249-197
ACCESSORIES_Jumper:
- 281-482
- 859-402
- 859-402/000-005
- 859-402/000-006
- 859-402/000-029
- 859-403
- 859-403/000-005
- 859-403/000-006
- 859-403/000-029
- 859-404
- 859-404/000-005
- 859-404/000-006
- 859-404/000-029
- 859-405
- 859-405/000-005
- 859-405/000-006
- 859-405/000-029
- 859-406/000-005
- 859-406/000-006
- 859-406/000-029
ACCESSORIES_Clamps:857-979
ACCESSORIES_TransferModule:857-980
ACCESSORIES_PowerSupply:787-2852
manufacturer_description:Loop-powered isolation amplifier; Bipolar current and voltage input signal; Current output signal; Configuration via DIP switch; Power supply via output; 6 mm module width; 2,50 mm2
Material data - Weight:37.9g
Material data - Fire load:0.418MJ
Physical data - Height:94 mm / 3.701 inches
manufacturer_detailed_description:
Short description:
WAGO's loop-powered isolator converts, amplifies, filters and electrically isolates standard unipolar/bipolar analog signals.
Features:
- No additional supply voltage required
- Zero/span adjustment
- Standard unipolar/bipolar analog signals at input
- Calibrated measurement range switching
- Switchable limit frequency
- 3-way electrical isolation with 2.5 kV test voltage
Commercial data - Product Group:6 (INTERFACE ELECTRONIC)
Physical data - Depth from upper-edge of DIN-rail:97.8 mm / 3.85 inches
Safety and protection - Protection type:IP20
Primary brand: Wago
Functions:
- Single-channel isolation amplifier
- Zero / span adjustment
Design:
- DIP switch
- loop-powered via output
Supply voltage (DC): 8-30Vdc (12Vdc / 24Vdc nom.)
Connection type: Push-in CAGE CLAMP spring connections
Mounting mode: DIN-35 rail
Analog inputs: 1 x analog input (-5...+5mA / -10...+10mA / -20...+20mA / 0-5mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -1...+1Vdc / -5...+5Vdc / -10...+10Vdc / -20...+20Vdc / 0-1Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
Analog outputs: 1 x analog output (4-20mA)
Measurement accuracy:
- ≤ 0.1% (transmission error)
- ≤ 0.01%/K (temperature coefficient)
Dimensions: H94mm x W6mm x D97.8mm
Net Width (mm): 6mm
Ambient air temperature for operation: -25°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Humidity: 5-95% relative humidity (RH; non-condensing)
GTIN code: 4045450000000
ETIM code: EC002653
eClass code: 27-21-01-20
Customs Tariff Number: 85437090300
Order code / Manufacturer SKU: 857-450
Manufacturer product status: Commercialized
Equivalent to: 857450
EAN code: 4045450000000
Compliant with standard(s):
- CE
- EMC immunity to interference
- - EN 61000-6-2
- EMC emission of interference
- - EN 61000-6-3
- General approvals
- - UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for hazardous areas
- - CCC - CNEX - CNCA-C23-01 - certificate 2020312310000210 (Ex ec IIC T4 Gc)
- - IECEx - TUV Nord Cert GmbH - certificate IECEX TUN14.0030X
- - UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX004X
- - UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726
- RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
Location of origin: Germany
