- Physical data - Pin spacing:5 mm / 0.197 inches
- Connection data - Number of levels:1
- Plug-in connection - Mismating protection:No
- Mechanical Data - Variable coding:Yes
- Plug-in connection - Plugging without loss of pin spacing:No
- Mechanical Data - Anti-rotation protection:Yes
- Plug-in connection - Mating direction to the PCB:90°
- Connection data - Total number of potentials:11
- Connection data - Connection 1 - Pole number:11
- Electrical data - Ratings per IEC/EN - Rated current:32A
- Material data - Color:gray
- Electrical data - Ratings per IEC/EN - Nominal voltage (III/3):250V
- Electrical data - Ratings per IEC/EN - Rated voltage (III/2):500V
- Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/3):4kV
- Electrical data - Ratings per IEC/EN - Rated impulse voltage (III/2):4kV
- Plug-in connection - Contact type (pluggable connector):Male connector/plug
- Plug-in connection - Connector (connection type):for PCB
- Mechanical Data - Mounting type:Feedthrough flange
- PCB contact - PCB contact:THT
- Connection data - Preceding contacts:No
- Physical data - Width:69.7 mm / 2.744 inches
- Material data - Note (material data):
Information on material specifications can be found here - Material data - Insulation material:Polyamide (PA66)
- Environmental requirements - Processing temperature:-35 ... +85 °C
- Environmental requirements - Continuous operating temperature:-60 ... +105 °C
- Commercial data - GTIN:4017330000000
- Commercial data - ETIM 8.0:EC002637
- Commercial data - ETIM 7.0:EC002637
- Commercial data - eClass 10.0:27-44-04-02
- Commercial data - eClass 9.0:27-44-04-02
- Commercial data - Customs tariff number:85366930000
- sku_code:769-641/004-000
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626
- CCA - DEKRA Certification B.V. - IEC 61984 - certificate NL-47799/A1
- CCA - DEKRA Certification B.V. - EN 61984 - certificate 2190419.02
- CSA - CSA Group - C22.2 - certificate 1101144
- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01
- UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171
- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Material data - Flammability class per UL94:V0
- Material data - Material group:I
- approvals_Declarations of conformity and manufacturer's declarations:
- EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- approvals_Approvals for marine applications:DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- Commercial data - Country of origin:PL
- Electrical data - Ratings per IEC/EN - Legend (ratings):(III / 3) Overvoltage category III / Pollution degree 3
- ACCESSORIES_Markingaccessories:
- 210-831
- 210-832
- 210-833
- 210-834
- ACCESSORIES_Coding:769-435

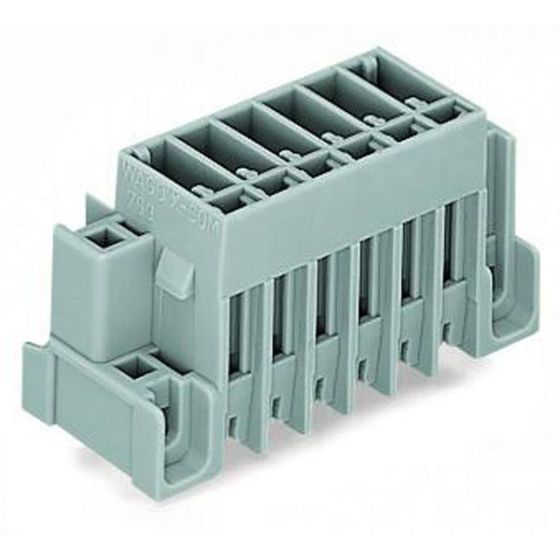

- manufacturer_description:THT male header; 1.0 x 1.0 mm solder pin; straight; Feedthrough flange; Pin spacing 5 mm; 11-pole; gray
- picture_filename_1:1024-0200000800036001000100b6-DE.jpg
- picture_zoom_filename_1:2000-0200000800036001000100b6-DE.jpg
- Material data - Weight:12.3g
- Material data - Fire load:0.369MJ
- picture_filename_2:1024-020000090000c36f000300b6-EN.jpg
- picture_zoom_filename_2:2000-020000090000c36f000300b6-EN.jpg
- Physical data - Depth:18.3 mm / 0.72 inches
- Commercial data - Product Group:18 (X-COM-System)
- Physical data - Height from the surface:22.2 mm / 0.874 inches
- Primary brand: Wago
- Functions: PCB straight THT male header - 1mm x 1mm solder pin - 5mm pin spacing
- Design:
- feed-through flanges
- pin spacing 5mm
- Poles: 11-poles (11P)
- Rated current: (IEC) 32A
- Color: Gray
- Shape: Straight shape
- Rated operating voltage (Ue): (IEC) 250V
- Rated impulse voltage (Uimp): (IEC) 4kV
- Connection type: Spring-cage (push-in) connections
- Dimensions: H22.2mm x W69.7mm x D18.3mm
- Material: Polyamide (PA) 66
- GTIN code: 4017330000000
- ETIM code: EC002637
- eClass code: 27-44-04-02
- Customs Tariff Number: 85366930000
- Order code / Manufacturer SKU: 769-641/004-000
- Manufacturer product status: Commercialized
- Equivalent to: 769641000000
- Compliant with standard(s):
- General approvals
- - CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626
- - CCA - DEKRA Certification B.V. - IEC 61984 - certificate NL-47799/A1
- - CCA - DEKRA Certification B.V. - EN 61984 - certificate 2190419.02
- - CSA - CSA Group - C22.2 - certificate 1101144
- - KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01
- - UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171
- - UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- - UK-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2
- RoHS compliant
- V-0 flammability rating
- Location of origin: Poland
- Cross-sells with:
- 210-831
- 210-832
- 210-833
- 210-834
- 769-435
- Level 1 category: Cabling systems
- Level 2 category: Connectors & Inserts
- Product title: PCB straight THT male header - 1mm x 1mm solder pin - 5mm pin spacing - feed-through flanges - Wago (X-COM series)
| Main function | PCB header |
|---|---|
| Product series / family name | 769 series |
| Sub-range name | X-COM series |
| Poles | 11P |
| Shape | Straight |
| Connection type (electrical) | Terminals (Spring) |
| Type - Option | with feed-through flanges |
