Wago - 753-540

Be the first to review this product

$205.80

Wago - 753-540 is available to buy in increments of 1

Overview

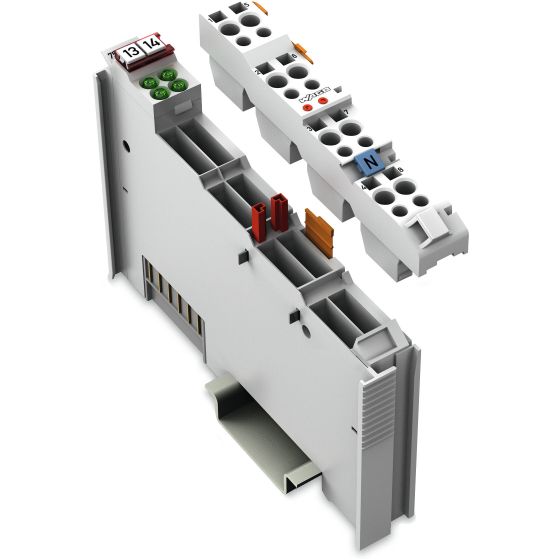

4-channel digital output; 230 VAC; 0.25 A; Solid-state

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Environmental requirements - Operating altitude:0 ... 2000 m / 0 ... 6562 ft
Technical data - Indicators:LED (A-D) green: Status DO 1 ... DO 4
Technical data - Number of outgoing power jumper contacts:2
Technical data - Number of incoming power jumper contacts:2
Technical data - Output data width (internal) max.:4bits
Technical data - Supply voltage (system):5 VDC; via data contacts
Technical data - Supply voltage (field):230 VAC; via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Technical data - Current carrying capacity (power jumper contacts):10A
Material data - Color:light gray
Technical data - Total number of channels (module):4
Technical data - Isolation:1500 V (system/field)
Connection data - Connection type 1:Output
Mechanical Data - Pluggable connector:Pluggable
Connection data - Solid conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
Connection data - Fine-stranded conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
Technical data - Output current:short-circuit-protected
Technical data - Short-circuit current:max. 10 A (16 ms)
Mechanical Data - Mounting type:DIN-35 rail
Environmental requirements - Mounting position:horizontal (standing/lying); vertical
Technical data - Actuator connection:4 x (2-wire)
Technical data - Output current per channel:0.25A
Technical data - Output characteristic:high-side switching
Technical data - Signal type:Digital
Technical data - Signal type (voltage):5 ... 250 VAC
Physical data - Width:12 mm / 0.472 inches
Material data - Housing material:Polycarbonate; polyamide 6.6
Environmental requirements - Ambient temperature (operation):0 ... +55 °C
Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
Environmental requirements - Relative humidity (without condensation):0.95
Environmental requirements - Permissible H₂S contaminant concentration at a relative humidity 75 %:10ppm
Environmental requirements - Permissible SO₂ contaminant concentration at a relative humidity 75 %:25ppm
Environmental requirements - Shock resistance:15g per IEC 60068-2-27
Environmental requirements - Vibration resistance:per IEC 60068-2-6
Technical data - Current consumption (5 V system supply):18mA
Commercial data - GTIN:4045450000000
Commercial data - ETIM 8.0:EC001599
Commercial data - ETIM 7.0:EC001599
Commercial data - eClass 10.0:27-24-26-04
Commercial data - eClass 9.0:27-24-26-04
Commercial data - Customs tariff number:85371098990
sku_code:753-540
Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
approvals_General approvals:
- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750
- UL - UL International Netherlands B.V. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.1
Environmental Product Compliance - RoHS Exemption:
- 6(c)
- 7(a)
- 7(c)-I
- 7(c)-II
approvals_Approvals for hazardous areas:
- ATEX - TUEV Nord Cert GmbH - EN 60079-0 - certificate TUEV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)
- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)
- EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate EAC RU C-DE.AM02.B.00163/19 (2Ex nA IIC T4 Gc X)
- IECEx - TUEV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)
- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X
- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec
- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726 Sec.1
Environmental requirements - Exposure to pollutants:Per IEC 60068-2-42 and IEC 60068-2-43
Material data - Conformity marking:CE
Commercial data - Country of origin:DE
Environmental requirements - Pollution degree:2 per IEC 61131-2
ACCESSORIES_Markingaccessories:
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 248-501
- 248-501/000-002
- 248-501/000-005
- 248-501/000-006
- 248-501/000-007
- 248-501/000-012
- 248-501/000-017
- 248-501/000-023
- 248-501/000-024
- 750-100
- 750-103
- 750-106
ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
ACCESSORIES_ShieldConnection:
- 790-108
- 790-116
- 790-124
- 790-140
- 790-208
- 790-216
- 790-220
ACCESSORIES_SystemBox:
- 850-814/002-000
- 850-815/002-000
- 850-816/002-000
- 850-817/002-000
- 850-825
- 850-826
- 850-826/002-000
- 850-827
- 850-827/002-000
- 850-828
- 850-828/002-000
- 850-834
- 850-835
- 850-836
ACCESSORIES_Supplymodule:
- 750-612
- 753-612
ACCESSORIES_PluggableWiringTier:753-150
mandatory_ACCESSORIES_PluggableWiringTier:753-110
manufacturer_description:4-channel digital output; 230 VAC; 0.25 A; Solid-state
Material data - Weight:41.4g
Material data - Fire load:0.881MJ
Physical data - Height:100 mm / 3.937 inches
manufacturer_detailed_description:
This digital output module transmits control signals from the automation device to the connected actuators.
The module has four output channels and eight actuators may be connected to it.
The signal state of the outputs is shown by an LED.
Field and system levels are electrically isolated.
Notice:
An additional supply module must be added for 120 (230) VAC supply!
Physical data - Depth:69.8 mm / 2.748 inches
Commercial data - Product Group:15 (I/O System)
Physical data - Depth from upper-edge of DIN-rail:62.6 mm / 2.465 inches
Environmental requirements - Protection type:IP20
Environmental requirements - EMC emission of interference:per EN 61000-6-4
Environmental requirements - EMC immunity to interference:per EN 61000-6-2
Technical data - Number of digital outputs:4
Technical data - Drop-out time (max.):10ms
Technical data - Pull-in time (max.):10ms
Primary brand: Wago
Functions: Pluggable AC digital output slice module
Supply voltage (AC): 230Vac fixed suppl. to field sensing devices
Supply voltage (DC): 5Vdc (supplied by system)
Connection type: Push-in spring CAGE CLAMP connections
Protection functions:
- short-circuit protection
- overvoltage protection
Mounting mode: DIN-35 rail
Digital outputs: 4 x digital outputs (5-250Vac / 250mA; high-side switching; 2-wire)
Dimensions: H100mm x W12mm x D69.8mm
Net Width (mm): 12mm
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -40°C...+85°C
Humidity: 95% relative humidity (RH; non-condensing)
Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
Current consumption: 18mA (5Vdc; system supply)
GTIN code: 4045450000000
ETIM code: EC001599
eClass code: 27-24-26-04
Customs Tariff Number: 85371098990
Order code / Manufacturer SKU: 753-540
Manufacturer product status: Commercialized
Equivalent to: 753540
EAN code: 4045450000000
Compliant with standard(s):
- EMC immunity to interference
- - EN 61000-6-2
- EMC emission of interference
- - EN 61000-6-4
- General approvals
- - KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750
- - UL - UL International Netherlands B.V. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.1
- Approvals for hazardous areas
- - ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)
- - CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)
- - EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate EAC RU C-DE.AM02.B.00163/19 (2Ex nA IIC T4 Gc X)
- - IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)
- - INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X
- - UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec
- - UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726 Sec.1
- RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
Location of origin: Germany
Degree of pollution: 2
