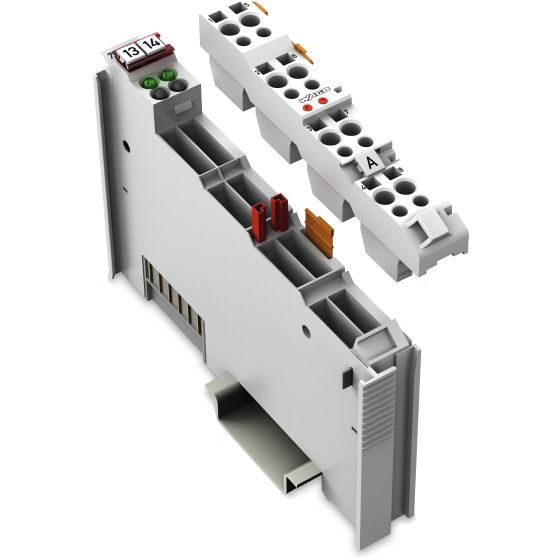

Wago - 753-513

Be the first to review this product

$106.40

Wago - 753-513 is available to buy in increments of 1

Overview

2-channel relay output; AC 250 V; 2.0 A; Potential-free; 2 make contact; light gray

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Environmental requirements - Operating altitude:0 ... 2000 m / 0 ... 6562 ft
Technical data - Indicators:LED (A, C) green: Status relay 1, relay 2
Technical data - Number of outgoing power jumper contacts:1
Technical data - Number of incoming power jumper contacts:1
Technical data - Output data width (internal) max.:2bits
Technical data - Supply voltage (system):5 VDC; via data contacts
Technical data - Supply voltage (field):Transmission of ground potential via power jumper contact
Technical data - Switching frequency (max.):0.5 Hz; Nominal load
Technical data - Current carrying capacity (power jumper contacts):10A
Technical data - Switching power:500 VA / 60 W; cos phi max. = 0.4; L/R max. = 7 ms
Material data - Color:light gray
Technical data - Total number of channels (module):2
Technical data - Isolation:1500 V (system/field)
Connection data - Connection type 1:Inputs/Outputs
Mechanical Data - Pluggable connector:Pluggable
Connection data - Solid conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
Connection data - Fine-stranded conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
Mechanical Data - Mounting type:DIN-35 rail
Environmental requirements - Mounting position:horizontal (standing/lying); vertical
Technical data - Actuator connection:2 x (1-wire)
Technical data - Output characteristic:potential-free
Technical data - Output circuit design:
- 2 make contacts
- Relay
Technical data - Switching current (max.):2A
Technical data - Switching current (min.):10mA
Technical data - Switching voltage (max.):250 VAC, 30 VDC
Technical data - Switching voltage (min.):5V
Technical data - Signal type:Digital
Physical data - Width:12 mm / 0.472 inches
Material data - Contact material:Ag alloy
Material data - Housing material:Polycarbonate; polyamide 6.6
Environmental requirements - Ambient temperature (operation):0 ... +55 °C
Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
Environmental requirements - Relative humidity (without condensation):0.95
Environmental requirements - Permissible H₂S contaminant concentration at a relative humidity 75 %:10ppm
Environmental requirements - Permissible SO₂ contaminant concentration at a relative humidity 75 %:25ppm
Environmental requirements - Shock resistance:15g per IEC 60068-2-27
Environmental requirements - Vibration resistance:4g per IEC 60068-2-6
Technical data - Current consumption (5 V system supply):100mA
Commercial data - GTIN:4050820000000
Commercial data - ETIM 8.0:EC001599
Commercial data - ETIM 7.0:EC001599
Commercial data - eClass 10.0:27-24-26-04
Commercial data - eClass 9.0:27-24-26-04
Commercial data - Customs tariff number:85371098990
sku_code:753-513
Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
approvals_General approvals:
- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750
- UL - UL International Netherlands B.V. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.1
approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - certificate 22-2219060
- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104
- BV - Bureau Veritas S.A. - certificate 13453/E0 BV
- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194
- KR - Korean Register of Shipping - certificate KR HMB05880-AC001
- LR - Lloyds Register EMEA - certificate LR22180952TA
- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23
- RINA - RINA Germany GmbH - certificate ELE343521XG001
approvals_Approvals for hazardous areas:
- ATEX - TUEV Nord Cert GmbH - EN 60079-0 - certificate TUEV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)
- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000213 (Ex ec nC IIC T4 Gc)
- EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate EAC RU C-DE.AM02.B.00163/19 (2Ex nA IIC T4 Gc X)
- IECEx - TUEV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)
- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X
- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec nC
- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726 Sec.1
Environmental requirements - Exposure to pollutants:Per IEC 60068-2-42 and IEC 60068-2-43
Material data - Conformity marking:CE
Commercial data - Country of origin:DE
Environmental requirements - Pollution degree:2 per IEC 61131-2
ACCESSORIES_Markingaccessories:
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 248-501
- 248-501/000-002
- 248-501/000-005
- 248-501/000-006
- 248-501/000-007
- 248-501/000-012
- 248-501/000-017
- 248-501/000-023
- 248-501/000-024
- 750-100
- 750-103
- 750-106
ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
ACCESSORIES_ShieldConnection:
- 790-108
- 790-116
- 790-124
- 790-140
- 790-208
- 790-216
- 790-220
ACCESSORIES_SystemBox:
- 850-814/002-000
- 850-815/002-000
- 850-816/002-000
- 850-817/002-000
- 850-825
- 850-826
- 850-826/002-000
- 850-827
- 850-827/002-000
- 850-828
- 850-828/002-000
- 850-834
- 850-835
- 850-836
ACCESSORIES_PluggableWiringTier:753-150
mandatory_ACCESSORIES_PluggableWiringTier:753-110
manufacturer_description:2-channel relay output; AC 250 V; 2.0 A; Potential-free; 2 make contact
Material data - Weight:44g
Material data - Fire load:1.242MJ
Physical data - Height:100 mm / 3.937 inches
manufacturer_detailed_description:
This digital output module transmits control signals from the automation device to the connected actuators.
The internal system voltage triggers the relay.
The NO contacts are electrically isolated.
The state of the relay is indicated by a LED.
Physical data - Depth:69.8 mm / 2.748 inches
Commercial data - Product Group:15 (I/O System)
Physical data - Depth from upper-edge of DIN-rail:62.6 mm / 2.465 inches
Environmental requirements - Protection type:IP20
Environmental requirements - EMC emission of interference:per EN 61000-6-4, marine applications
Environmental requirements - EMC immunity to interference:per EN 61000-6-2, marine applications
Technical data - Number of digital outputs:2
Technical data - Drop-out time (max.):10ms
Technical data - Pull-in time (max.):10ms
Technical data - Bounce time (typ.):1.2ms
Primary brand: Wago
Functions: Pluggable AC digital rly. output slice module
Supply voltage (DC): 5Vdc (supplied by system)
Frequency: 0.5Hz switching frequency
Connection type: Push-in spring CAGE CLAMP connections
Mounting mode: DIN-35 rail
Digital outputs: 2 x digital outputs (NO rly. contacts (potential-free); 250Vac / 30Vdc / 2A; 1-wire)
Dimensions: H100mm x W12mm x D69.8mm
Net Width (mm): 12mm
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -40°C...+85°C
Humidity: 95% relative humidity (RH; non-condensing)
Mechanical resistance:
- Vibration resistance according to EN 60068-2-6 -- 4g
- Shock resistance according to EN 60068-2-27 --15g
Current consumption: 100mA (5Vdc; system supply)
GTIN code: 4050820000000
ETIM code: EC001599
eClass code: 27-24-26-04
Customs Tariff Number: 85371098990
Order code / Manufacturer SKU: 753-513
Manufacturer product status: Commercialized
Equivalent to: 753513
EAN code: 4050820000000
Compliant with standard(s):
- EMC immunity to interference
- - EN 61000-6-2
- - marine applications
- EMC emission of interference
- - EN 61000-6-4
- - marine applications
- General approvals
- - KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750
- - UL - UL International Netherlands B.V. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.1
- Approvals for marine applications
- - ABS - American Bureau of Shipping - certificate 22-2219060
- - BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104
- - BV - Bureau Veritas S.A. - certificate 13453/E0 BV
- - DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194
- - KR - Korean Register of Shipping - certificate KR HMB05880-AC001
- - LR - Lloyds Register EMEA - certificate LR22180952TA
- - PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23
- - RINA - RINA Germany GmbH - certificate ELE343521XG001
- Approvals for hazardous areas
- - ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)
- - CCC - CNEX - CNCA-C23-01 - certificate 2020312310000213 (Ex ec nC IIC T4 Gc)
- - EAC - Brjansker Zertifizierungsstelle - TP TC 012/2011 - certificate EAC RU C-DE.AM02.B.00163/19 (2Ex nA IIC T4 Gc X)
- - IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)
- - INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X
- - UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec nC
- - UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726 Sec.1
- RoHS compliant
Location of origin: Germany
Degree of pollution: 2
