Wago - 752-8303/8000-002
$1,526.00
Wago - 752-8303/8000-002 is available to buy in increments of 1
Overview
Edge Controller; PIO3 C
- Technical data - ETHERNET protocols:
- DHCP
- DNS
- FTP
- FTPS
- HTTP
- HTTPS
- SSH
- Technical data - Indicators:3-color LED â€" red, green, blue; 4 x red/green LED
- Technical data - Visualization:
- Web-Visu
- Target Visu
- Technical data - Supply voltage:24 VDC, SELV (18 ... 31.2 V); LPS; with reverse voltage protection
- Technical data - Processor:ARM(R) Cortex(R) A9 Quad-Core 1.0 GHz
- Technical data - Programming environment:
- CODESYS V3.5, Firmware Release 24 or higher
- e!COCKPIT (based on CODESYS V3) up to Firmware Release 22
- Technical data - Internal memory (flash):
- 4096MB
- 4 GB, eMMC
- Technical data - Main memory (RAM):2 GB, DDR3 SDRAM
- Technical data - Non-volatile hardware memory:128Kbytes
- Connection data - Connection technology: communication/fieldbus:ETHERNET: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; RS-232/-485 Interface: 1 x D-sub 9 socket
- Environmental requirements - Mounting type:DIN-35 rail
- Technical data - Baud rate:ETHERNET: 10/100 Mbit/s; CAN: 1 MBd
- Technical data - Baud rate (communication/fieldbus 1):10/100 Mbit/s
- Technical data - Baud rate (communication/fieldbus 2):1 MBd
- Physical data - Width:65 mm / 2.559 inches
- Mechanical Data - Housing material:Aluminum, powder-coated
- Environmental requirements - Ambient temperature (operation):-20 ... +60 °C
- Environmental requirements - Ambient temperature (storage):-20 ... +80 °C
- Environmental requirements - Relative humidity (without condensation):0.9
- Technical data - Input current (max.) (24 V):120mA
- Commercial data - GTIN:4066970000000
- Commercial data - ETIM 8.0:EC001413
- Commercial data - Customs tariff number:84714100000
- sku_code:752-8303/8000-002
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:
- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate R-R-W43-EDGE752
- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199
- approvals_Declarations of conformity and manufacturer's declarations:EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Commercial data - Country of origin:DE
- Technical data - Operating system:Real-time Linux (with RT-Preempt patch)

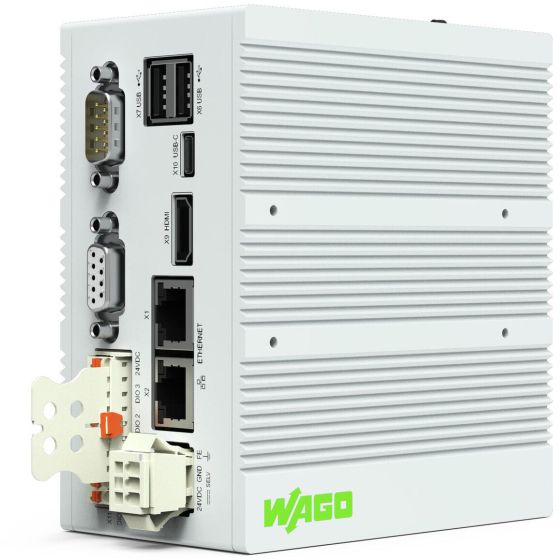

- manufacturer_description:Edge Controller; 2 x ETHERNET, 2 x USB, 1 x USB-C, HDMI, CAN, DI/DO, RS-232/485, Audio; Control
- picture_filename_1:1024-4222518-DE.jpg
- picture_zoom_filename_1:2000-4222518-DE.jpg
- picture_filename_2:1024-4222519-DE.jpg
- picture_zoom_filename_2:2000-4222519-DE.jpg
- Physical data - Height:123 mm / 4.843 inches
- Physical data - Depth:115 mm / 4.528 inches
- picture_filename_3:1024-5278079-EN.jpg
- picture_zoom_filename_3:2000-5278079-EN.jpg
- Environmental requirements - Protection type:IP20
- Mechanical Data - Weight:600g
- Technical data - Communication:
- Web browser
- Web browser (HTML5)
- Modbus TCP master/slave
- Modbus (UDP), WagoAppPlcModbus Library
- Modbus (RTU), WagoAppPlcModbus Library
- ETHERNET
- EtherNet/IPTM Adapter (slave)
- EtherNet/IPTM Scanner
- CANopen
- EtherCAT(R) Master
- OPC UA Server/Client
- OPC UA Pub/Sub (can be installed later)
- MQTT
- RS-232 serial interface
- RS-485 interface
- BACnet/IP, requires an additional license
- Telecontrol protocols, requires an additional license
- MicroBrowser (including visualization of CODESYS V2.3), requires an additional license
- Primary brand: Wago
- Functions:
- Programmable Logic Controller (PLC) CPU unit
- DHCP
- DNS
- FTP
- FTPS
- HTTP
- HTTPS
- SSH
- Processor type: ARM Cortex-A9 Quad-Core 1GHz
- Programming languages:
- Programming environment
- - CODESYS V3.5 Firmware Release 24 or higher
- - e!COCKPIT (based on CODESYS V3) up to Firmware Release 22
- Memory capacity: 2GB memory (RAM)
- Connection type:
- 2 x RJ45 connectors (fieldbus)
- 9-pin D-sub connector (serial port)
- Mounting mode: DIN-35 rail
- Speed:
- 10Mbit/s
- 100Mbit/s
- Dimensions: H123mm x W65mm x D115mm
- Net Width (mm): 65mm
- Material: Powder-coated Aluminium housing
- Ambient air temperature for operation: -20°C...+60°C
- Ambient air temperature for storage: -20°C...+80°C
- Humidity: 90% relative humidity (RH; non-condensing)
- GTIN code: 4066970000000
- ETIM code: EC001413
- Customs Tariff Number: 84714100000
- Order code / Manufacturer SKU: 752-8303/8000-002
- Manufacturer product status: Commercialized
- Equivalent to: 75283000000000
- EAN code: 4066970000000
- Compliant with standard(s):
- General approvals
- - KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate R-R-W43-EDGE752
- - UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- RoHS compliant
- Location of origin: Germany
- Operating System (OS): Real-time Linux (with RT-Preempt patch)
- Level 1 category: Automation components
- Level 2 category: Programmable Logic Controllers & components
- Level 3 category: CPU Units
- Product title: Programmable Logic Controller (PLC) CPU unit - Wago
| Main function | CPU unit |
|---|---|
| Product series / family name | 752 series |
| Connection type (electrical) | D-Sub connector, RJ-45 connector |
| Communication protocol | CANopen, Ethernet |
| Mounting mode | DIN rail |
| Digital inputs quantity | no digital inputs |
| Digital outputs quantity | no digital outputs |
| Analog inputs quantity | no analog inputs |
| Analog outputs quantity | no analog outputs |
| Degree of protection | IP20 |
| Type - Option | Standard (No options) |
