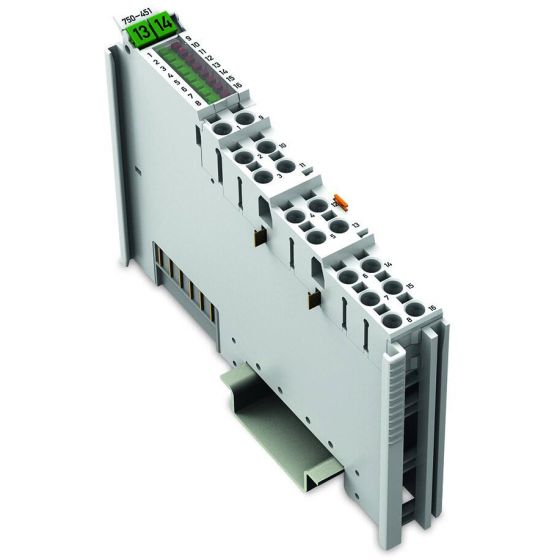

Wago - 750-451/025-000

$626.20
Wago - 750-451/025-000 is available to buy in increments of 1
Overview
8-channel analog input; Resistance measurement; Adjustable; Ext. Temperature; -
  • Technical data - Configuration options:
    • WAGO-I/O-CHECK
    • e!COCKPIT
  • Environmental requirements - Operating altitude:0 ... 2000 m / 0 ... 6562 ft
  • Technical data - Indicators:LED (1-8) green: Status R1 ... R8; LED (9-16) red: Error R1 ... R8
  • Technical data - Number of outgoing power jumper contacts:2
  • Technical data - Number of incoming power jumper contacts:2
  • Technical data - Data width:8 x 16-bit data; 8 x 8-bit control/status (optional)
  • Technical data - Supply voltage (system):5 VDC; via data contacts
  • Technical data - Supply voltage (field):24 VDC (-25 ... +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
  • Technical data - Total number of channels (module):8
  • Technical data - Isolation:500 V system/field
  • Connection data - Connection type 1:Inputs/Outputs
  • Connection data - Solid conductor:0.08 ... 1.5 mm2 / 28 ... 16 AWG
  • Connection data - Fine-stranded conductor:0.25 ... 1.5 mm2 / 22 ... 16 AWG
  • Mechanical Data - Mounting type:DIN-35 rail
  • Environmental requirements - Mounting position:horizontal (standing/lying); vertical
  • Technical data - Sensor connection:8 x (2-wire)
  • Technical data - Signal type:
    • Resistance measurement
    • Potentiometer positions
  • Technical data - Sensor types:Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), Potentiometer: 10R ... 1k2, 10R ... 5k0
  • Technical data - Signal type (configurable):yes
  • Technical data - Response time (max.):3s
  • Technical data - Measurement error (25 °C):≤ Â+/-0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤ Â+/-0.2 K (Pt1000, Ni1000); ≤ Â+/-0.3 Ω for resistance measurement
  • Physical data - Width:12 mm / 0.472 inches
  • Material data - Housing material:Polycarbonate; polyamide 6.6
  • Environmental requirements - Ambient temperature (operation):-20 ... +60 °C
  • Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
  • Environmental requirements - Relative humidity (without condensation):0.95
  • Environmental requirements - Permissible H2S contaminant concentration at a relative humidity 75 %:10ppm
  • Environmental requirements - Permissible SO2 contaminant concentration at a relative humidity 75 %:25ppm
  • Environmental requirements - Relative humidity (with condensation):Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of -20 to +60 °C (except for wind-driven precipitation, water and ice formation)
  • Environmental requirements - Shock resistance:15g per IEC 60068-2-27
  • Environmental requirements - Vibration resistance:4g per IEC 60068-2-6
  • Technical data - Conversion time (typ.):100ms
  • Technical data - Current consumption (5 V system supply):110mA
  • Commercial data - GTIN:4055140000000
  • Commercial data - ETIM 8.0:EC001596
  • Commercial data - ETIM 7.0:EC001596
  • Commercial data - eClass 10.0:27-24-26-01
  • Commercial data - eClass 9.0:27-24-26-01
  • Commercial data - Customs tariff number:85389099990
  • sku_code:750-451/025-000
  • Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
  • approvals_General approvals:KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750
  • approvals_Declarations of conformity and manufacturer's declarations:
    • EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
    • UK-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
  • Environmental Product Compliance - RoHS Exemption:
    • 6(c)
    • 7(a)
    • 7(c)-I
    • 7(c)-II
  • Environmental requirements - Exposure to pollutants:Per IEC 60068-2-42 and IEC 60068-2-43
  • Material data - Conformity marking:CE
  • Commercial data - Country of origin:DE
  • Environmental requirements - Pollution degree:2 per IEC 61131-2
  • ACCESSORIES_Markingaccessories:
    • 2009-145
    • 2009-145/000-002
    • 2009-145/000-005
    • 2009-145/000-006
    • 2009-145/000-007
    • 2009-145/000-012
    • 2009-145/000-023
    • 2009-145/000-024
    • 248-501
    • 248-501/000-002
    • 248-501/000-005
    • 248-501/000-006
    • 248-501/000-007
    • 248-501/000-012
    • 248-501/000-017
    • 248-501/000-023
    • 248-501/000-024
    • 750-103
    • 750-107
  • ACCESSORIES_Tools:210-719
  • ACCESSORIES_Carrierrail:
    • 210-112
    • 210-113
    • 210-114
    • 210-115
    • 210-118
    • 210-196
    • 210-197
    • 210-198
    • 210-504
    • 210-505
    • 210-506
    • 210-508
  • ACCESSORIES_ShieldConnection:
    • 790-108
    • 790-116
    • 790-124
    • 790-140
    • 790-208
    • 790-216
    • 790-220
  • ACCESSORIES_SystemBox:
    • 850-814/002-000
    • 850-815/002-000
    • 850-816/002-000
    • 850-817/002-000
    • 850-825
    • 850-826
    • 850-826/002-000
    • 850-827
    • 850-827/002-000
    • 850-828
    • 850-828/002-000
    • 850-834
    • 850-835
    • 850-836
  • manufacturer_description:8-channel analog input; Resistance measurement; Adjustable; Ext. Temperature
  • picture_filename_1:1024-0200001b0000ee93000100b6-DE.jpg
  • picture_zoom_filename_1:2000-0200001b0000ee93000100b6-DE.jpg
  • Material data - Weight:49g
  • Material data - Fire load:0.835MJ
  • picture_filename_2:1024-0200001b0000aa22000100b6-EN.jpg
  • picture_zoom_filename_2:2000-0200001b0000aa22000100b6-EN.jpg
  • Physical data - Height:100 mm / 3.937 inches
  • manufacturer_detailed_description:

    This analog input module directly connects to Pt or Ni resistance sensors.

    Two-wire sensors can be connected.

    The module automatically linearizes the entire temperature range. A sensor error (short circuit, wire break or out-of-measurement range) is indicated by a red LED. Unused channels can be deactivated.

    The module can be configured via WAGO-I/O-CHECK or GSD files.

    It features multiple setting options and high accuracy.

  • Physical data - Depth:69 mm / 2.717 inches
  • picture_filename_3:1024-0200001b0000ab42000100b6-EN.jpg
  • picture_zoom_filename_3:2000-0200001b0000ab42000100b6-EN.jpg
  • picture_filename_4:1024-020000260003408e000100b6-DE.jpg
  • picture_zoom_filename_4:2000-020000260003408e000100b6-DE.jpg
  • Physical data - Depth from upper-edge of DIN-rail:61.8 mm / 2.433 inches
  • Environmental requirements - Protection type:IP20
  • Environmental requirements - EMC emission of interference:per EN 61000-6-3
  • Environmental requirements - EMC immunity to interference:per EN 61000-6-1; EN 61000-6-2
  • Technical data - Number of analog inputs:8
  • Technical data - Resolution (over entire range):0.1 °C (over the entire range); 0.01 °C (â€"50 ... 150 °C; Pt1000, Ni1000)
  • Technical data - Temperature range:-200 ... +850 °C (Pt100, Pt200, Pt500, Pt1000), -60 ... +250 °C (Ni100, Ni1000), -80 ... +260 °C (Ni120)
  • Primary brand: Wago
  • Functions: Standard analog input slice module
  • Design: extended temperature range
  • Supply voltage (DC):
    • 5Vdc (supplied by system)
    • 18-32.5Vdc adjustable suppl. to field sensing devices
  • Programming languages:
    • Configuration options
    • - WAGO-I/O-CHECK
    • - e!COCKPIT
  • Connection type: Push-in spring CAGE CLAMP connections
  • Mounting mode: DIN-35 rail
  • Analog inputs: 8 x analog inputs (Configurable RTD Pt100 / Pt200 / Pt500 / Pt1000 / Ni100 / Ni120 / Ni1000 (TK6180 / TK5000) / Potentiometer 0...1200Ω / 0...5000Ω / 0.1°C resolution / 100ms conversion; 2-wire)
  • Measurement accuracy: +-0.6k; +-0.2K; +-0.3...0.7Ω (measuring error)
  • Dimensions: H100mm x W12mm x D69mm
  • Net Width (mm): 12mm
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Ambient air temperature for operation: -20°C...+60°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Mechanical resistance:
    • Vibration resistance according to EN 60068-2-6 -- 4g
    • Shock resistance according to EN 60068-2-27 --15g
  • Processing time: 100ms
  • Current consumption: 110mA (5Vdc; system supply)
  • GTIN code: 4055140000000
  • ETIM code: EC001596
  • eClass code: 27-24-26-01
  • Customs Tariff Number: 85389099990
  • Order code / Manufacturer SKU: 750-451/025-000
  • Manufacturer product status: Commercialized
  • Equivalent to: 750451000000
  • EAN code: 4055140000000
  • Compliant with standard(s):
    • EMC immunity to interference
    • - EN 61000-6-1
    • - EN 61000-6-2
    • EMC emission of interference
    • - EN 61000-6-3
    • General approvals
    • - KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750
    • Declarations of conformity and manufacturer's declarations
    • - EU-Declaration of Conformity - WAGO GmbH & Co. KG
    • - UK-Declaration of Conformity - WAGO GmbH & Co. KG
    • RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
  • Location of origin: Germany
  • Degree of pollution: 2
  • Cross-sells with:
    • 2009-145
    • 2009-145/000-002
    • 2009-145/000-005
    • 2009-145/000-006
    • 2009-145/000-007
    • 2009-145/000-012
    • 2009-145/000-023
    • 2009-145/000-024
    • 210-112
    • 210-113
    • 210-114
    • 210-115
    • 210-196
    • 210-197
    • 210-198
    • 210-504
    • 210-505
    • 210-506
    • 210-508
    • 210-719
    • 248-501
    • 248-501/000-002
    • 248-501/000-005
    • 248-501/000-006
    • 248-501/000-007
    • 248-501/000-012
    • 248-501/000-017
    • 248-501/000-023
    • 248-501/000-024
    • 750-103
    • 750-107
    • 790-108
    • 790-116
    • 790-124
    • 790-140
    • 790-208
    • 790-216
    • 790-220
    • 850-814/002-000
    • 850-815/002-000
    • 850-816/002-000
    • 850-817/002-000
    • 850-825
    • 850-826
    • 850-826/002-000
    • 850-827
    • 850-827/002-000
    • 850-828
    • 850-828/002-000
    • 850-834
    • 850-835
    • 850-836
  • Level 1 category: Automation components
  • Level 2 category: Programmable Logic Controllers & components
  • Level 3 category: I-O Units
  • Product title: Standard analog input slice module - Wago
More Information
Main function I/O unit
Product series / family name 750 series
Connection type (electrical) Terminals (Spring)
Mounting mode DIN rail
Digital inputs quantity no digital inputs
Digital outputs quantity no digital outputs
Analog inputs quantity 8
Analog inputs type RTD, RTD type Ni1000
Analog outputs quantity no analog outputs
Degree of protection IP20
Type - Installation in cabinet
Type - Option extended temperature range
