Wago - 750-610/040-000

Be the first to review this product

$99.27

Wago - 750-610/040-000 is available to buy in increments of 1

Overview

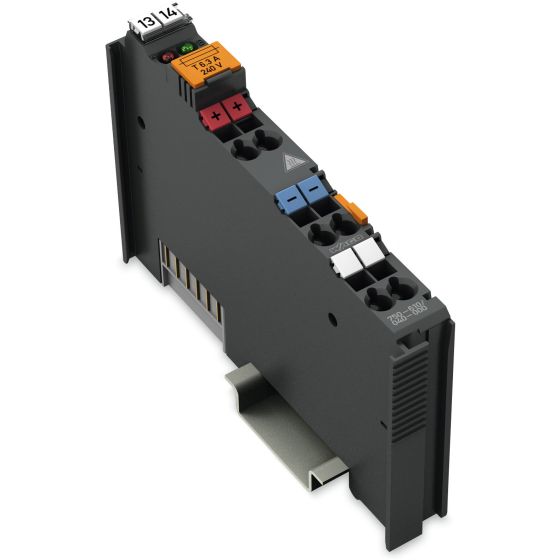

Power Supply; 24 VDC; fuse holder; Diagnostics; Extreme; dark gray

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Environmental requirements - Operating altitude:Without temperature derating: 0 ... 2000 m; with temperature derating: 2000 ... 5000 m (0.5 K/100 m); 5000 m (max.)
Technical data - Indicators:LED (A) red: defective fuse error; LED (B) green: power supply status
Technical data - Number of outgoing power jumper contacts:2
Technical data - Data width:2 bits (1 bit current monitoring, 1 bit fuse fault)
Technical data - Fuse:5 x 20; T 6.3 A (not included)
Technical data - Supply voltage (system):5 VDC; via data contacts
Technical data - Supply voltage (field):24 VDC (-25 ... +30 %); via power jumper contacts (power supply via CAGE CLAMP^(R) connection; transmission via spring contact); Derating must be observed!
Technical data - Current carrying capacity (power jumper contacts):6.3A
Material data - Color:dark gray
Technical data - Rated surge voltage:1 kV
Connection data - Connection type 1:Field supply
Connection data - Solid conductor:0.25 ... 2.5 mm2 / 24 ... 14 AWG
Connection data - Fine-stranded conductor:0.25 ... 2.5 mm2 / 24 ... 14 AWG
Technical data - Diagnostics:Supply voltage (field): Detection â€œon" at > 15 VDC; Detection â€œoff" at < 5 VDC
Mechanical Data - Mounting type:DIN-35 rail
Environmental requirements - Mounting position:Horizontal (standing/lying); vertical
Technical data - Signal type:Voltage
Technical data - Signal type (voltage):24 VDC
Physical data - Width:12 mm / 0.472 inches
Material data - Housing material:Polycarbonate; polyamide 6.6
Environmental requirements - Ambient temperature (operation):-40 ... +70 °C
Technical data - Derating:Derating (supply voltage):
Ambient temperatures under laboratory conditions: (-25 ... +30Â°%);
for -40 ... +55Â°°C: 24Â°V (-25 ... +20Â°%);
for +55 ... +70Â°°C: 24Â°V (-25 ... +10Â°%);
Lower limit in all temperature ranges: -27.5Â°% (including 15Â°% residual ripple)
Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
Environmental requirements - Relative humidity (without condensation):0.95
Environmental requirements - Permissible H₂S contaminant concentration at a relative humidity 75 %:10ppm
Environmental requirements - Permissible SO₂ contaminant concentration at a relative humidity 75 %:25ppm
Environmental requirements - Relative humidity (with condensation):Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
Environmental requirements - Shock resistance:Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Environmental requirements - Vibration resistance:Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Technical data - Current consumption (5 V system supply):5mA
Commercial data - GTIN:4055140000000
Commercial data - ETIM 8.0:EC001600
Commercial data - ETIM 7.0:EC001600
Commercial data - eClass 10.0:27-24-26-10
Commercial data - eClass 9.0:27-24-26-10
Commercial data - Customs tariff number:85389091890
sku_code:750-610/040-000
Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
approvals_General approvals:UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199
approvals_Declarations of conformity and manufacturer's declarations:EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
approvals_Approvals for marine applications:
- ABS - American Bureau of Shipping - certificate 22-2208829-PDA
- LR - Lloyds Register - certificate LR22276776TA
- PRS - Polski Rejestr Statkow - certificate TE/1099/880590/23
Environmental Product Compliance - RoHS Exemption:
- 6(c)
- 7(a)
- 7(c)-I
- 7(c)-II
approvals_Approvals for hazardous areas:
- ATEX - TUEV Nord Cert GmbH - EN 60079-0 - certificate TUEV 17 ATEX 193969X (II 3 G Ex ec IIC T4 Gc)
- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000214 (Ex ec IIC T4 Gc)
- IECEx - TUEV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 16.0046X (Ex ec IIC T4 Gc)
- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX005X_ec
- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726 Sec.1
Environmental requirements - Exposure to pollutants:Per IEC 60068-2-42 and IEC 60068-2-43
Material data - Conformity marking:CE
Commercial data - Country of origin:DE
Environmental requirements - Pollution degree:2 per IEC 61131-2
ACCESSORIES_Markingaccessories:
- 2009-145
- 2009-145/000-002
- 2009-145/000-005
- 2009-145/000-006
- 2009-145/000-007
- 2009-145/000-012
- 2009-145/000-023
- 2009-145/000-024
- 248-501
- 248-501/000-002
- 248-501/000-005
- 248-501/000-006
- 248-501/000-007
- 248-501/000-012
- 248-501/000-017
- 248-501/000-023
- 248-501/000-024
- 750-103
- 750-107
ACCESSORIES_Carrierrail:
- 210-112
- 210-113
- 210-114
- 210-115
- 210-118
- 210-196
- 210-197
- 210-198
- 210-504
- 210-505
- 210-506
- 210-508
ACCESSORIES_ShieldConnection:
- 790-108
- 790-116
- 790-124
- 790-140
- 790-208
- 790-216
- 790-220
ACCESSORIES_SystemBox:
- 850-814/002-000
- 850-815/002-000
- 850-816/002-000
- 850-817/002-000
- 850-825
- 850-826
- 850-826/002-000
- 850-827
- 850-827/002-000
- 850-828
- 850-828/002-000
- 850-834
- 850-835
- 850-836
manufacturer_description:Power Supply; 24 VDC; fuse holder; Diagnostics; Extreme
Material data - Weight:46.8g
Material data - Fire load:0.961MJ
Physical data - Height:100 mm / 3.937 inches
manufacturer_detailed_description:
This power supply module provides the modules with the corresponding supply potential.
The maximum current provided by the supply module is 6.3 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.
The supply module can be fuse-protected (5 x 20 mm). The fuse can be changed quickly, with ease, from the retractable fuse carrier.
A blown fuse and the status of the supply voltage are indicated via LEDs.
The module sends information about the status of the supply module to the fieldbus coupler through two input bits. One bit is for the status of the fuse. The other bit is for the status of the supply voltage
The device is ideal for operation in extreme environments thanks to:
- An extended temperature range
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Physical data - Depth:67.8 mm / 2.669 inches
Physical data - Depth from upper-edge of DIN-rail:60.6 mm / 2.386 inches
Environmental requirements - Protection type:IP20
Environmental requirements - EMC emission of interference:Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
Environmental requirements - EMC immunity to interference:per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;
EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
Primary brand: Wago
Functions:
- I.O. power supply module
- diagnostics
Design:
- extended temperature range
- accessible fus. holder
Supply voltage (DC): 18-31.2Vdc (24Vdc nom.)
Rated current: 6.3A
Connection type: CAGE CLAMP spring connections
Mounting mode: DIN-35 rail
Dimensions: H100mm x W12mm x D67.8mm
Net Width (mm): 12mm
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Ambient air temperature for operation: -40°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Humidity: 95% relative humidity (RH; non-condensing)
Mechanical resistance:
- Vibration resistance according to EN 60068-2-6 -- 5g
- Shock resistance according to EN 60068-2-27 --15g (11ms / half-sine / 1000 shocks)
- Shock resistance according to EN 60068-2-27 --25g (6ms / 1000 shocks)
Current consumption: 5mA (5Vdc; system supply)
GTIN code: 4055140000000
ETIM code: EC001600
eClass code: 27-24-26-10
Customs Tariff Number: 85389091890
Order code / Manufacturer SKU: 750-610/040-000
Manufacturer product status: Commercialized
Equivalent to: 750610000000
EAN code: 4055140000000
Compliant with standard(s):
- EMC immunity to interference
- - EN 61000-6-1
- - EN 61000-6-2
- - EN 61131-2
- - marine applications
- - EN 50121-3-2
- - EN 50121-4
- - EN 50121-5
- - EN 60255-26
- - EN 60870-2-1
- - EN 61850-3
- - IEC 61000-6-5
- - IEEE 1613
- - VDEW (1994)
- EMC emission of interference
- - Per EN 61000-6-3
- - EN 61000-6-4
- - EN 61131-2
- - EN 60255-26
- - marine applications
- - EN 60870-2-1
- - EN 61850-3
- - EN 50121-3-2
- - EN 50121-4
- - EN 50121-5
- General approvals
- - UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- Approvals for marine applications
- - ABS - American Bureau of Shipping - certificate 22-2208829-PDA
- - LR - Lloyds Register - certificate LR22276776TA
- - PRS - Polski Rejestr Statkow - certificate TE/1099/880590/23
- Approvals for hazardous areas
- - ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV 17 ATEX 193969X (II 3 G Ex ec IIC T4 Gc)
- - CCC - CNEX - CNCA-C23-01 - certificate 2020312310000214 (Ex ec IIC T4 Gc)
- - IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 16.0046X (Ex ec IIC T4 Gc)
- - UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX005X_ec
- - UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726 Sec.1
- RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
Location of origin: Germany
Degree of pollution: 2
