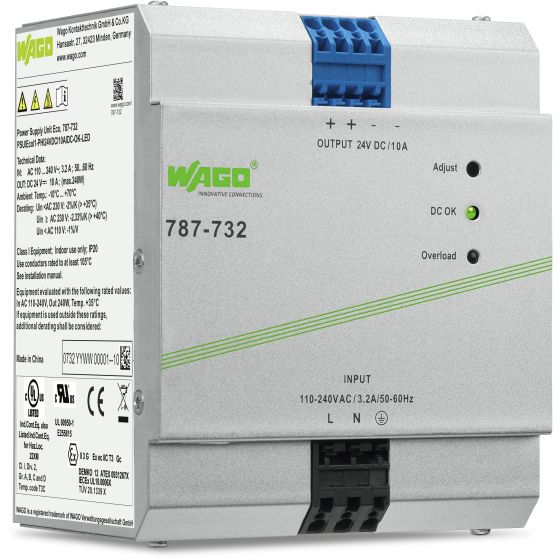

Wago - 787-732

Technical data - Input - Nominal mains frequency range:47 ... 63 Hz; 0 Hz
Safety and protection - Series operation:Yes
Safety and protection - Parallel operation:Yes
Technical data - Signaling and communication - Signaling:
- 1 x LED DC OK (green)
- 1 x Overload LED (red)
Technical data - Signaling and communication - Operation status indicator:
- Green LED (24 VDC OK)
- Red LED (overload)
Technical data - Input - Power factor correction (PFC):Active
Technical data - Input - Nominal input voltage U_{i nom}:
- 1 x AC 100 ... 240 V
- 1 x AC 110 ... 240 V
Technical data - Input - Input voltage range:1 x AC 90 ... 264 V; DC 90 ... 373 V
Technical data - Input - Phases:1
Technical data - Output - Nominal output current I_{o nom}:10 A (24 VDC)
Technical data - Output - Nominal output power:240W
Technical data - Output - Nominal output voltage U_{o nom}:DC 24 V (SELV)
Technical data - Output - Output voltage range:DC 22 ... 28 V (adjustable)
Technical data - Output - Default setting:DC 24 V
Connection data - Connection type 1:Input/Output
Connection data - Connection technology:CAGE CLAMP^(R)
Connection data - WAGO connector:WAGO 745 Series
Connection data - Solid conductor:0.08 ... 4 mm2 / 28 ... 12 AWG
Connection data - Fine-stranded conductor:0.08 ... 4 mm2 / 28 ... 12 AWG
Connection data - Note (conductor cross-section):12 AWG: THHN, THWN
Safety and protection - Transient suppression (primary):Varistor
Safety and protection - Open-circuit-proof:Yes
Safety and protection - Short-circuit-protected:Yes
Technical data - Output - Overload behavior:Constant power (in overload range: 1.15 ... 1.4 x I_{o nom}); Shutdown and automatic restart in the event of a short circuit
Technical data - Efficiency/power losses - Efficiency (typ.):86 % (230 VAC)
Mechanical Data - Mounting type:DIN-35 rail
Technical data - Output - Deviation:≤ 1 %
Physical data - Width:110 mm / 4.331 inches
Environmental requirements - Ambient temperature (operation):-10 ... +70 °C
Environmental requirements - Derating:-2.33Â°%/K (> 40Â°°C; 230Â°VAC)
Environmental requirements - Ambient temperature (storage):-25 ... +85 °C
Environmental requirements - Relative humidity: 95% (no condensation permissible)
Technical data - Input - Input current I_i:≤ 1.5 A (230 VAC); ≤ 3 A (115 VAC)
Technical data - Input - Inrush current:≤ 30 A
Commercial data - GTIN:4045450000000
Commercial data - ETIM 8.0:EC002540
Commercial data - ETIM 7.0:EC002540
Commercial data - eClass 10.0:27-04-07-01
Commercial data - eClass 9.0:27-04-07-01
Commercial data - Customs tariff number:85044083900
Technical data - Efficiency/power losses - Power loss P_l:≤ 37.5 W (230 VAC; Nominal load)
Technical data - Efficiency/power losses - Power loss (max.) P_{l (max.)}:53 W (110 VAC / 24 VDC; 11 A)
sku_code:787-732
Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
approvals_General approvals:
- UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817
- UL - Underwriters Laboratories Inc. - UL 60950-1 - certificate E255815
approvals_Declarations of conformity and manufacturer's declarations:MFD for SEMI F47 - WAGO GmbH & Co. KG - certificate -
approvals_Approvals for hazardous areas:
- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV20.1339X
- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX001X_ec nC T3
- UL - UL International Germany GmbH (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726 Section 5
Standards and specifications - Standards/specifications:
- IECEx
- EN 62368-1
- EN 61204-3
- cURus 60950-1
- cULus 508
- ANSI/ISA 12.12.01 (Class I Div. 2)
- ATEX
- IEC Ex
- SEMI F47
- UL HazLoc
Standards and specifications - Conformity marking:CE
Safety and protection - Overvoltage category:II
Safety and protection - Protection class:I
Safety and protection - Isolation voltage (sec.-PE):DC 0.7 kV
Commercial data - Country of origin:CN
Safety and protection - Pollution degree:2
Technical data - Output - Residual ripple:≤ 100 mV (peak-to-peak)
Safety and protection - MTBF:480,000 h (per IEC 61709)
Technical data - Input - Mains failure hold-up time:≥ 20 ms (230 VAC)
ACCESSORIES_Tools:
- 210-720
- 210-769
manufacturer_description:Power supply; Eco; 1-phase; 24 VDC output voltage; 10 A output current; DC-OK LED; 4,00 mm2
Material data - Weight:1200g
Material data - Fire load:10.1MJ
Physical data - Height:136 mm / 5.354 inches
manufacturer_detailed_description:
Features:
- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- Suitable for both parallel and series operation
- Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204
Commercial data - Product Group:6 (INTERFACE ELECTRONIC)
Physical data - Depth from upper-edge of DIN-rail:92 mm / 3.622 inches
Safety and protection - Protection type:IP20; per EN 60529
Technical data - Input - Power factor:≥ 0.94 (230 VAC); ≥ 0.98 (115 VAC)
Primary brand: Wago
Network frequency: 47-63Hz
Functions:
- Eco switch-mode AC/DC power supply unit (SMPS PSU)
- Series operation possible
- Parallel operation possible
Supply voltage (AC): 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
Supply voltage (DC): 90-373Vdc
Type of network: Single-phase AC (1AC) or DC
Rated current:
- 10A (-10...+40°C)
- 3.01A (70°C; input voltage < 230Vac; -2.33% output derating for every 1K temperature rise above 40°C)
Rated power: 240W
Output voltage (DC):
- 24Vdc (SELV)
- 22-28Vdc (adjustable)
Hold time: 20ms (230Vac input)
Connection type: CAGE CLAMP spring connections
Protection functions:
- F 5A / 250Vac internal fuse
- Constant power (in overload range 1.15...1.4 x Io nom)
- Shutdown and automatic restart in the event of a short circuit
- Short-circuit protection
- Open circuit protection
Efficiency: 0.86
Mounting mode: DIN-35 rail
Measurement accuracy: ≤ 1% (output error)
Dimensions: H136mm x W110mm x D92mm
Net Width (mm): 110mm
Ambient air temperature for operation: -10°C...+70°C
Ambient air temperature for storage: -25°C...+85°C
Humidity: 95% relative humidity (RH; non-condensing)
Current consumption:
- 1.5A (230Vac)
- 3A (115Vac)
GTIN code: 4045450000000
ETIM code: EC002540
eClass code: 27-04-07-01
Customs Tariff Number: 85044083900
Order code / Manufacturer SKU: 787-732
Manufacturer product status: Commercialized
Equivalent to: 787732
Replaces: 787-632
EAN code: 4045450000000
Compliant with standard(s):
- Safety and protection
- - Isolation voltage (sec.-PE; DC) -- DC 0.7kV
- CE
- ANSI/ISA 12.12.01 (Class I Div. 2)
- ATEX
- EN 61204-3
- EN 62368-1
- IEC Ex
- IECEx
- SEMI F47
- UL HazLoc
- cULus 508
- cURus 60950-1
- General approvals
- - UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817
- - UL - Underwriters Laboratories Inc. - UL 60950-1 - certificate E255815
- Declarations of conformity and manufacturer's declarations
- - MFD for SEMI F47 - WAGO GmbH & Co. KG
- Approvals for hazardous areas
- - INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV20.1339X
- - UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX001X_ec nC T3
- - UL - UL International Germany GmbH (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726 Section 5
- RoHS compliant
Location of origin: China
Degree of pollution: 2
Ripple: 100mVpp (output voltage)
MTBF (Mean Time Between Failures): 480 000h
Cross-sells with:
- 210-720
- 210-769
Level 1 category: Automation components
Level 2 category: Power supply units
Product title: Eco switch-mode AC/DC power supply unit (SMPS PSU) - Wago (EPSITRON Eco series)
