Wago - 787-1211
$103.60
Wago - 787-1211 is available to buy in increments of 1
Overview
SMPS COMPACT 1-ph
- Technical data - Input - Nominal mains frequency range:47 ... 63 Hz; 0 Hz
- Safety and protection - Series operation:Yes, for 2 devices of the same type
- Safety and protection - Parallel operation:Yes, for devices of the same type
- Technical data - Signaling and communication - Signaling:1 x LED DC OK (green)
- Technical data - Signaling and communication - Operation status indicator:Green LED (Uo)
- Technical data - Input - Power factor correction (PFC):Passive
- Technical data - Input - Nominal input voltage Ui nom:1 x AC 100 ... 240 V; DC 140 ... 340 V
- Technical data - Input - Input voltage range:1 x AC 85 ... 264 V; DC 125 ... 375 V
- Technical data - Input - Phases:1
- Technical data - Output - Nominal output current Io nom:0.208333333333333
- Technical data - Output - Nominal output power:60W
- Technical data - Output - Nominal output voltage Uo nom:DC 12 V (SELV)
- Technical data - Output - Output voltage range:DC 10 ... 14 V (adjustable)
- Technical data - Output - Default setting:DC 12 V
- Connection data - Connection type 1:Input/Output
- Connection data - Connection technology:Push-in CAGE CLAMP(R)
- Connection data - WAGO connector:picoMAX(R) 5.0, WAGO 2092 Series
- Connection data - Cable length (max.):30 m
- Connection data - Solid conductor:0.2 ... 2.5 mm2 / 24 ... 12 AWG
- Connection data - Fine-stranded conductor:0.2 ... 2.5 mm2 / 24 ... 12 AWG
- Safety and protection - Transient suppression (primary):Varistor
- Safety and protection - Open-circuit-proof:Yes
- Safety and protection - Short-circuit-protected:Yes
- Technical data - Output - Overload behavior:Constant power (in overload range: 1.22 ... 1.7 x Io nom); Hiccup in the event of a short circuit or permanent overload
- Safety and protection - Overvoltage protection; secondary:≤ 20 VDC (in the event of a fault)
- Safety and protection - Reverse voltage protection:Yes
- Technical data - Efficiency/power losses - Efficiency (typ.):88.5 % (230 VAC; Nominal load); 87.5 % (110 VAC; Nominal load)
- Mechanical Data - Mounting type:
- DIN-35 rail
- Screw mount (back/side)
- Mechanical Data - Housing design:DIN-rail-mount enclosure
- Technical data - Output - Deviation:≤ 1 %
- Technical data - Output - Deviation, dynamic load change 10 ... 90 %:≤ 1 %
- Physical data - Note (dimensions):Depth: 48 mm (without cover)
- Physical data - Width:72 mm / 2.835 inches
- Environmental requirements - Ambient temperature (operation):-25 ... +70 °C
- Environmental requirements - Derating:-3°%/K (> +45°°C and Ue = 90°VAC); -2.3°%/K (> +50°°C and Ue = 230°VAC)
- Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
- Environmental requirements - Relative humidity:20 ... 90 % (no condensation permissible)
- Technical data - Input - Input current Ii:≤ 0.6 A
- Technical data - Input - Inrush current:≤ 30 A (NTC)
- Commercial data - GTIN:4055140000000
- Commercial data - ETIM 8.0:EC002540
- Commercial data - ETIM 7.0:EC002540
- Commercial data - Customs tariff number:85044083900
- Technical data - Efficiency/power losses - Power loss Pl:≤ 0.6 W
- Technical data - Efficiency/power losses - Power loss (max.) Pl (max.):9 W (100 VAC / 12 VDC; 2.5 A)
- sku_code:787-1211
- Environmental Product Compliance - RoHS Compliance Status:Compliant,No Exemption
- approvals_General approvals:UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817
- Material data - Flammability class per UL94:V0
- approvals_Declarations of conformity and manufacturer's declarations:EU-Declaration of Conformity - WAGO GmbH & Co. KG - certificate -
- Standards and specifications - Standards/specifications:
- EN 61204-3
- EN 60335-1
- EN 62368-1
- UL 60950-1
- UL 508
- Standards and specifications - Conformity marking:CE
- Safety and protection - Overvoltage category:II
- Safety and protection - Protection class:I
- Commercial data - Country of origin:CN
- Safety and protection - Pollution degree:2
- Technical data - Output - Residual ripple:≤ 100 mV (peak-to-peak)
- Safety and protection - MTBF:> 500,000 h (per IEC 61709)
- Technical data - Input - Mains failure hold-up time:≥ 600 ms (230 VAC); ≥ 12 ms (110 VAC)
- ACCESSORIES_Tools:
- 210-720
- 210-769
- ACCESSORIES_Strainreliefplate:2092-1601

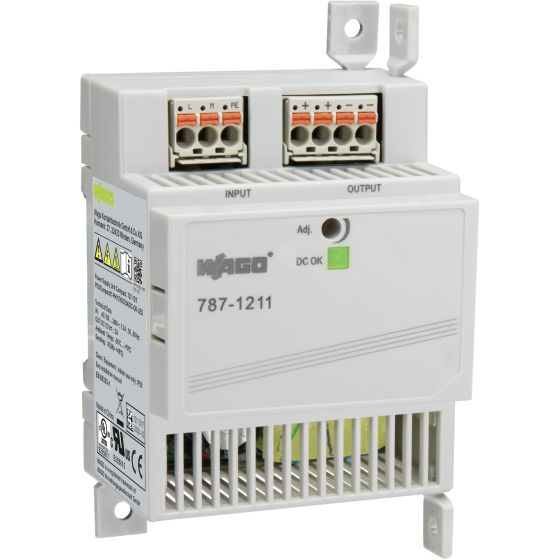

- manufacturer_description:Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 5 A output current; DC-OK LED
- picture_filename_1:1024-020000310001ba48000100b6-DE.jpg
- picture_zoom_filename_1:2000-020000310001ba48000100b6-DE.jpg
- Material data - Weight:63g
- picture_filename_2:1024-0200001a0000e175000200b6-DE.jpg
- picture_zoom_filename_2:2000-0200001a0000e175000200b6-DE.jpg
- Physical data - Height:90 mm / 3.543 inches
- manufacturer_detailed_description:
Features:
- Switched-mode power supply
- Stepped profile for installation in standard distribution boards
- Removable front panel and screw mounts for alternative installation in distribution boxes or devices
- Pluggable picoMAX(R) Connection Technology (tool-free)
- Suitable for both parallel and series operation
- Electrically isolated output voltage (SELV) per EN 60335-1 and UL 60950-1; PELV per EN 60204
- Physical data - Depth:56 mm / 2.205 inches
- Physical data - Depth from upper-edge of DIN-rail:52.5 mm / 2.067 inches
- Safety and protection - Protection type:IP20; per EN 60529
- Technical data - Input - Power factor:≥ 0.5
- Primary brand: Wago
- Network frequency: 47-63Hz
- Functions:
- Compact switch-mode AC/DC power supply unit (SMPS PSU)
- Series operation possible (for 2 devices of the same type)
- Parallel operation possible (for devices of the same type)
- Relay contact output with status indication (DC OK)
- Design: DC-OK rly. contact output
- Supply voltage (AC): 85-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
- Supply voltage (DC): 125-375Vdc
- Type of network: Single-phase AC (1AC) or DC
- Rated current:
- 5A (-25...+45°C)
- 5.575A (45°C; -2.3% output derating for every 1K temperature rise above 50°C)
- 4.825A (50°C; -3% output derating for every 1K temperature rise above 45°C)
- Rated power: 60W
- Output voltage (DC):
- 12Vdc (SELV)
- 10-14Vdc (adjustable)
- Hold time:
- 600ms (230Vac input)
- 12ms (110Vac input)
- Connection type: Push-in CAGE CLAMP spring connections
- Protection functions:
- T 3.15A / 250Vac internal fuse
- Constant power (in overload range 1.22...1.7 x Io nom)
- Hiccup in the event of a short circuit or permanent overload
- Short-circuit protection
- Open circuit protection
- Efficiency:
- 0.885 (230Vac input; Nominal load)
- 0.875 (110Vac input; Nominal load)
- Mounting mode:
- DIN-35 rail
- Wall (screws) back/side
- Measurement accuracy: ≤ 1% (output error)
- Dimensions: H90mm x W72mm x D56mm
- Net Width (mm): 72mm
- Ambient air temperature for operation: -25°C...+70°C
- Ambient air temperature for storage: -40°C...+85°C
- Humidity: 20-90% relative humidity (RH; non-condensing)
- Current consumption: 0.6A
- GTIN code: 4055140000000
- ETIM code: EC002540
- Customs Tariff Number: 85044083900
- Order code / Manufacturer SKU: 787-1211
- Manufacturer product status: Commercialized
- Equivalent to: 7871211
- EAN code: 4055140000000
- Compliant with standard(s):
- CE
- EN 60335-1
- EN 61204-3
- EN 62368-1
- UL 508
- UL 60950-1
- General approvals
- - UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817
- Declarations of conformity and manufacturer's declarations
- - EU-Declaration of Conformity - WAGO GmbH & Co. KG
- RoHS compliant
- V-0 flammability rating
- Location of origin: China
- Degree of pollution: 2
- Ripple: 100mVpp (output voltage)
- MTBF (Mean Time Between Failures): 500 000h
- Cross-sells with:
- 2092-1601
- 210-720
- 210-769
- Level 1 category: Automation components
- Level 2 category: Power supply units
- Product title: Compact switch-mode AC/DC power supply unit (SMPS PSU) - Wago (EPSITRON Compact series)
| Main function | Power supply unit |
|---|---|
| Product series / family name | Power supply units |
| Sub-range name | EPSITRON Compact series |
| Supply voltage (AC) | 100Vac, 240Vac |
| Supply voltage (DC) | 127Vdc, 250Vdc |
| Rated current | 1A < In ≤ 5A |
| Rated power (W) | 50W < Pn ≤ 60W |
| Output voltage (DC) | 10Vdc < Vout ≤ 15Vdc |
| Connection type (electrical) | Terminals (Spring) |
| Mounting mode | DIN rail, Surface |
| Degree of protection | IP20 |
| Type - Input | 1-phase AC, DC |
| Type - Option | with DC-OK relay contact output |
