- Environmental requirements - Operating altitude (max.):2000m
- Technical data - Signaling - Status indicator:Red LED
- Safety and protection - Insulation type (control/load circuit):Basic insulation
- Safety and protection - Insulation type (adjacent devices):Reinforced insulation (safe isolation)
- Safety and protection - Insulation type (between adjacent devices of the same type):Reinforced insulation (safe isolation)
- Safety and protection - Insulation type (to adjacent devices of different types):Reinforced insulation (safe isolation)
- Technical data - Load circuit - Switching frequency:≤ 2.5 kHz
- Technical data - Load circuit - Limiting continuous current:0.5 A
- Material data - Color:gray
- Safety and protection - Rated voltage:300V
- Technical data - Load circuit - Output voltage range:DC 3 ... 30 V
- Technical data - Load circuit - Nominal output voltage:DC 24 V
- Safety and protection - Dielectric strength (control/load circuit) (AC, 1 min):2.5 kVrms
- Connection data - Connection technology:CAGE CLAMP(R)
- Technical data - Load circuit - Circuit type:2-wire connection
- Connection data - Solid conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
- Connection data - Fine-stranded conductor:0.08 ... 2.5 mm2 / 28 ... 14 AWG
- Connection data - Fine-stranded conductor; with insulated ferrule:0.08 ... 1.5 mm2 / 28 ... 16 AWG
- Technical data - Control circuit - Input voltage range (high level):DC 9 ... 16 V
- Technical data - Control circuit - Input voltage range (low level):DC 0 ... 5 V
- Technical data - Control circuit - Nominal input voltage UN:DC 12 V
- Mechanical data - Mounting type:DIN-35 rail
- Mechanical data - Mounting position:horizontal (standing/lying); vertical
- Physical data - Width:6 mm / 0.236 inches
- Environmental requirements - Processing temperature:-25 ... +50 °C
- Environmental requirements - Ambient temperature (operation at UN):-25 ... +55 °C
- Environmental requirements - Ambient temperature UL (operation at UN):-25 ... +40 °C
- Environmental requirements - Ambient temperature (storage):-40 ... +70 °C
- Environmental requirements - Relative humidity:5 ... 95 % (no condensation permissible)
- Technical data - Control circuit - Nominal input current at UN:10 mA
- Commercial data - GTIN:4055140000000
- Commercial data - ETIM 8.0:EC001504
- Commercial data - ETIM 7.0:EC001504
- Commercial data - eClass 10.0:27-26-15-03
- Commercial data - eClass 9.0:27-26-15-03
- Commercial data - Customs tariff number:85365005000
- sku_code:859-797
- Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
- approvals_General approvals:UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4
- Environmental Product Compliance - RoHS Exemption:7(a)
- approvals_Approvals for hazardous areas:
- CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)
- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec
- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726
- Standards and specifications - Standards/specifications:
- EN 61010-2-201
- EN 61000-6-2
- EN 61000-6-3
- UL 508
- Safety and protection - Overvoltage category:II
- Commercial data - Country of origin:DE
- Safety and protection - Pollution degree:2
- ACCESSORIES_Markingaccessories:
- 2009-145
- 210-110
- 248-501
- 248-502
- 248-503
- 248-504
- 248-506
- ACCESSORIES_Tools:210-720
- ACCESSORIES_Ferrule:
- 216-221
- 216-222
- 216-223
- 216-224
- 216-321
- 216-322
- ACCESSORIES_Check:859-500
- ACCESSORIES_Jumper:
- 859-402
- 859-402/000-005
- 859-402/000-006
- 859-402/000-029
- 859-403
- 859-403/000-005
- 859-403/000-006
- 859-403/000-029
- 859-404
- 859-404/000-005
- 859-404/000-006
- 859-404/000-029
- 859-405
- 859-405/000-005
- 859-405/000-006
- 859-405/000-029
- 859-406/000-005
- 859-406/000-006
- 859-406/000-029
- 859-407
- ACCESSORIES_Endplate:859-525

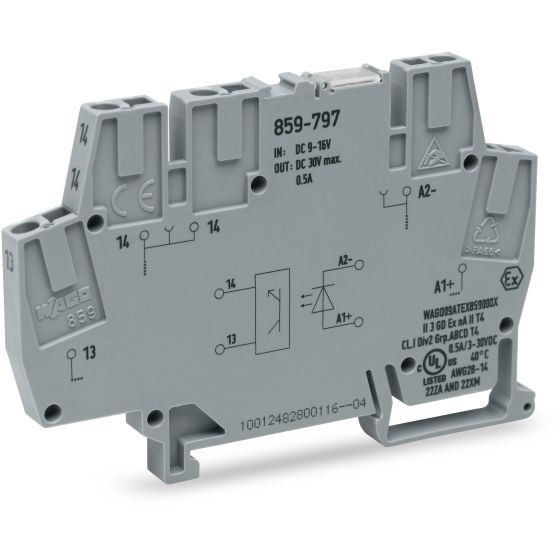

- manufacturer_description:Optocoupler module; Nominal input voltage: 12 VDC; Output voltage range: 3 ... 30 VDC; Limiting continuous current: 0.5 A; 2-wire connection; Module width: 6 mm; gray
- picture_filename_1:1024-02000024000075ac000100b6-DE.jpg
- picture_zoom_filename_1:2000-02000024000075ac000100b6-DE.jpg
- Material data - Weight:18.6g
- Material data - Fire load:0.338MJ
- picture_filename_2:1024-0200001600014f5c000500b6-DE.jpg
- picture_zoom_filename_2:2000-0200001600014f5c000500b6-DE.jpg
- Physical data - Height:91 mm / 3.583 inches
- Commercial data - Product Group:6 (INTERFACE ELECTRONIC)
- picture_filename_3:1024-0200000400010bff000100b6-DE.jpg
- picture_zoom_filename_3:2000-0200000400010bff000100b6-DE.jpg
- Physical data - Depth from upper-edge of DIN-rail:56 mm / 2.205 inches
- Safety and protection - Protection type:IP20; in connected state or when using 859-525 end plate
- Technical data - Load circuit - Turn-off time:≤ 100 µs
- Technical data - Load circuit - Turn-on time:≤ 15 µs
- Primary brand: Wago
- Functions: Fixed-type solid-state / static relay (SSR)
- Design:
- red LED
- 2-wire connection
- Poles: single-pole / single-phase / 1-pole (1P)
- Frequency: 2.5kHz switching frequency
- Rated current: 0.5A (continuous)
- Rated Voltage (DC): 3Vdc-30Vdc (24Vdc nom.) output
- Connection type: CAGE CLAMP spring connections
- Control Voltage (DC): 9-16Vdc (12Vdc nom.)
- Mounting mode: DIN-35 rail
- Response time:
- (switching ON) 15μs / 0.000015s
- (switching OFF) 100μs / 0.0001s
- Dimensions:
- H91mm x W6mm x D56mm
- 6mm width
- Ambient air temperature for operation: -25°C...+55°C
- Ambient air temperature for storage: -40°C...+70°C
- Humidity: 5-95% relative humidity (RH; non-condensing)
- GTIN code: 4055140000000
- ETIM code: EC001504
- eClass code: 27-26-15-03
- Customs Tariff Number: 85365005000
- Order code / Manufacturer SKU: 859-797
- Manufacturer product status: Commercialized
- Equivalent to: 859797
- Compliant with standard(s):
- EN 61000-6-2
- EN 61000-6-3
- EN 61010-2-201
- UL 508
- General approvals
- - UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4
- Approvals for hazardous areas
- - CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)
- - UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec
- - UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726
- RoHS compliant with exemption (7(a))
- Location of origin: Germany
- Degree of pollution: 2
- Cross-sells with:
- 2009-145
- 210-110
- 210-720
- 216-221
- 216-222
- 216-223
- 216-224
- 216-321
- 216-322
- 248-501
- 248-502
- 248-503
- 248-504
- 248-506
- 859-402
- 859-402/000-005
- 859-402/000-006
- 859-402/000-029
- 859-403
- 859-403/000-005
- 859-403/000-006
- 859-403/000-029
- 859-404
- 859-404/000-005
- 859-404/000-006
- 859-404/000-029
- 859-405
- 859-405/000-005
- 859-405/000-006
- 859-405/000-029
- 859-406/000-005
- 859-406/000-006
- 859-406/000-029
- 859-407
- 859-500
- 859-525
- Level 1 category: Automation components
- Level 2 category: Control components
- Level 3 category: Control relays
- Product title: Fixed-type solid-state / static relay (SSR) - Wago
| Main function | Solid State Relay (SSR) |
|---|---|
| Product series / family name | 859 series |
| Poles | 1P |
| Rated current | In ≤ 1A |
| Rated Voltage (DC) | 10Vdc < Un ≤ 15Vdc, 25Vdc < Un ≤ 30Vdc, 2Vdc < Un ≤ 3Vdc, 9Vdc < Un ≤ 10Vdc |
| Connection type (electrical) | Fixed, Terminals (Spring) |
| Control Voltage (DC) | 12Vdc |
| Mounting mode | DIN rail |
| Type - Option | with LED indicator |
