Wago - 857-1494

$44.52

Wago - 857-1494 is available to buy in increments of 1

Overview

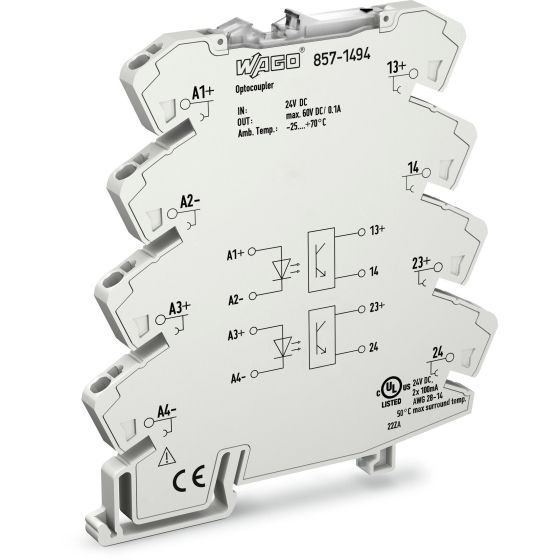

Optocoupler module; 2-port; Nominal input voltage: 24 VDC; Output voltage range: 9 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Yellow status indicator; Module width: 6 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Environmental requirements - Operating altitude (max.):2000m
Technical data - Signaling - Status indicator:Yellow LED
Safety and protection - Insulation type (control/load circuit):Basic insulation
Safety and protection - Insulation type (between adjacent devices of the same type):Reinforced insulation (safe isolation)
Safety and protection - Insulation type (to adjacent devices of different types):Reinforced insulation (safe isolation)
Safety and protection - Insulation type (load/load circuit):Reinforced insulation (safe isolation)
Technical data - Load circuit - Switching frequency:≤ 1.5 kHz
Technical data - Load circuit - Limiting continuous current:0.1 A
Material data - Color:light gray
Safety and protection - Rated voltage:300V
Technical data - Load circuit - Output voltage range:DC 9 ... 60 V
Technical data - Load circuit - Nominal output voltage:DC 24 V
Safety and protection - Dielectric strength (control/load circuit) (AC, 1 min):2.5 kVrms
Safety and protection - Dielectric strength (channel/channel) (AC, 1 min):3.5 kVrms
Connection data - Connection technology:Push-in CAGE CLAMP^(R)
Technical data - Load circuit - Circuit type:
- 2-way
- 2-wire connection
Connection data - Solid conductor:0.34 ... 2.5 mm2 / 22 ... 14 AWG
Connection data - Fine-stranded conductor:0.34 ... 2.5 mm2 / 22 ... 14 AWG
Connection data - Fine-stranded conductor; with insulated ferrule:0.34 ... 1.5 mm2 / 22 ... 16 AWG
Technical data - Control circuit - Input voltage range (high level):DC 16.8 ... 31.2 V
Technical data - Control circuit - Input voltage range (low level):DC 0 ... 5 V
Technical data - Control circuit - Nominal input voltage U_N:DC 24 V
Mechanical data - Mounting type:DIN-35 rail
Mechanical data - Mounting position:horizontal (standing/lying); vertical
Physical data - Width:6 mm / 0.236 inches
Environmental requirements - Processing temperature:-25 ... +50 °C
Environmental requirements - Ambient temperature (operation at U_N):-25 ... +70 °C
Environmental requirements - Ambient temperature UL (operation at U_N):-25 ... 50 °C
Environmental requirements - Ambient temperature (storage):-40 ... +70 °C
Environmental requirements - Relative humidity:5 ... 85 % (no condensation permissible)
Technical data - Control circuit - Nominal input current at U_N:6 mA
Commercial data - GTIN:4050820000000
Commercial data - ETIM 8.0:EC001504
Commercial data - ETIM 7.0:EC001504
Commercial data - eClass 10.0:27-26-15-03
Commercial data - eClass 9.0:27-26-15-03
Commercial data - Customs tariff number:85365005000
sku_code:857-1494
Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
approvals_General approvals:UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4
Environmental Product Compliance - RoHS Exemption:
- 7(a)
- 7(c)-I
Standards and specifications - Standards/specifications:
- EN 61000-6-2
- EN 61000-6-3
- EN 61373
- EN 61010-2-201
- UL 508 (max. 50 °C/0.1 A)
Safety and protection - Overvoltage category:II
Commercial data - Country of origin:DE
Safety and protection - Pollution degree:2
ACCESSORIES_Markingaccessories:
- 2009-110
- 2009-115
- 209-128
- 209-183
- 209-184
- 210-110
- 249-105
- 793-501
- 793-502
- 793-503
- 793-504
- 793-505
- 793-506
- 793-5501
- 793-566
ACCESSORIES_Tools:210-720
ACCESSORIES_Ferrule:
- 216-241
- 216-242
- 216-243
- 216-244
ACCESSORIES_Jumper:
- 281-482
- 859-402
- 859-402/000-005
- 859-402/000-006
- 859-402/000-029
- 859-403
- 859-403/000-005
- 859-403/000-006
- 859-403/000-029
- 859-404
- 859-404/000-005
- 859-404/000-006
- 859-404/000-029
- 859-405
- 859-405/000-005
- 859-405/000-006
- 859-405/000-029
- 859-406/000-005
- 859-406/000-006
- 859-406/000-029
manufacturer_description:Optocoupler module; 2-port; Nominal input voltage: 24 VDC; Output voltage range: 9 ... 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Yellow status indicator; Module width: 6 mm
Material data - Weight:30.2g
Material data - Fire load:0.418MJ
Physical data - Height:94 mm / 3.701 inches
Commercial data - Product Group:6 (INTERFACE ELECTRONIC)
Physical data - Depth from upper-edge of DIN-rail:97.8 mm / 3.85 inches
Safety and protection - Protection type:IP20
Technical data - Load circuit - Turn-off time:≤ 120 µs
Technical data - Load circuit - Turn-on time:≤ 20 µs
Primary brand: Wago
Functions: Fixed-type solid-state / static relay (SSR)
Design:
- yellow LED
- 2-wire connection
Poles: 2-channels / 2-poles / 2-phases (2P)
Frequency: 1.5kHz switching frequency
Rated current: 0.1A (continuous)
Rated Voltage (DC): 9Vdc-60Vdc (24Vdc nom.) output
Connection type: Push-in CAGE CLAMP spring connections
Control Voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
Mounting mode: DIN-35 rail
Response time:
- (switching ON) 20Î¼s / 0.00002s
- (switching OFF) 120Î¼s / 0.00012s
Dimensions:
- H94mm x W6mm x D97.8mm
- 6mm width
Ambient air temperature for operation: -25°C...+70°C
Ambient air temperature for storage: -40°C...+70°C
Humidity: 5-85% relative humidity (RH; non-condensing)
GTIN code: 4050820000000
ETIM code: EC001504
eClass code: 27-26-15-03
Customs Tariff Number: 85365005000
Order code / Manufacturer SKU: 857-1494
Manufacturer product status: Commercialized
Equivalent to: 8571494
EAN code: 4050820000000
Compliant with standard(s):
- EN 61000-6-2
- EN 61000-6-3
- EN 61010-2-201
- EN 61373
- UL 508 (max. 50°C/0.1A)
- General approvals
- - UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4
- RoHS compliant with exemption (7(a) / 7(c)-I)
Location of origin: Germany
Degree of pollution: 2
Cross-sells with:
- 2009-110
- 2009-115
- 209-128
- 209-183
- 209-184
- 210-110
- 210-720
- 216-241
- 216-242
- 216-243
- 216-244
- 249-105
- 281-482
- 793-501
- 793-502
- 793-503
- 793-504
- 793-505
- 793-506
- 793-5501
- 793-566
- 859-402
- 859-402/000-005
- 859-402/000-006
- 859-402/000-029
- 859-403
- 859-403/000-005
- 859-403/000-006
- 859-403/000-029
- 859-404
- 859-404/000-005
- 859-404/000-006
- 859-404/000-029
- 859-405
- 859-405/000-005
- 859-405/000-006
- 859-405/000-029
- 859-406/000-005
- 859-406/000-006
- 859-406/000-029
Level 1 category: Automation components
Level 2 category: Control components
Level 3 category: Control relays
Product title: Fixed-type solid-state / static relay (SSR) - Wago

More Information

More Information
Main function	Solid State Relay (SSR)
Product series / family name	857 series
Poles	2P
Rated current	In ≤ 1A
Rated Voltage (DC)	10Vdc < Un ≤ 15Vdc, 50Vdc < Un ≤ 60Vdc, 8Vdc < Un ≤ 9Vdc, 9Vdc < Un ≤ 10Vdc
Connection type (electrical)	Fixed, Terminals (Spring)
Control Voltage (DC)	24Vdc
Mounting mode	DIN rail
Degree of protection	IP20
Type - Option	with LED indicator
