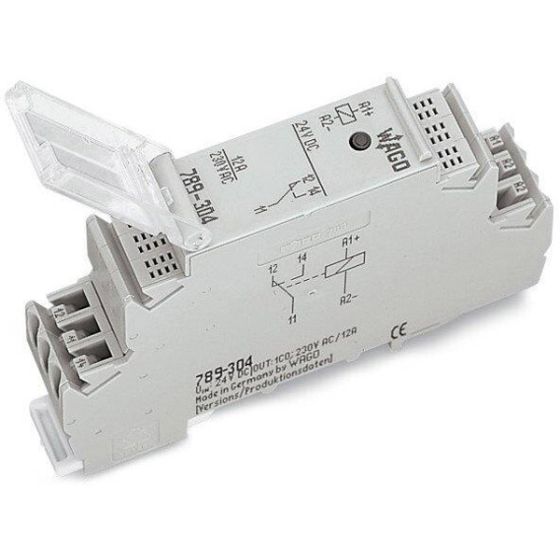

Wago - 789-304

$47.13

Wago - 789-304 is available to buy in increments of 1

Overview

Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 12 A; Red status indicator; Module width: 18 mm; 2,50 mm²; gray

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical data - Signaling - Status indicator:Red LED
Technical data - Load circuit - Recommended minimum load:12 V / 10 mA
Technical data - Load circuit - Limiting continuous current:0
Technical data - Load circuit - Inrush current (resistive) max.:(AC) 30 A / 4 s
Technical data - Load circuit - Switching power (resistive) max.:AC 3000 VA; DC (see load limit curve)
Material data - Color:gray
Safety and protection - Rated voltage:250V
Technical data - Load circuit - Switching voltage (max.):AC 250 V
Safety and protection - Rated surge voltage:4kV
Safety and protection - Dielectric strength (control/load circuit) (AC, 1 min):5 kVrms
Safety and protection - Dielectric strength (open contact) (AC, 1 min):1 kVrms
Connection data - Connection technology:CAGE CLAMP^(R)
Connection data - Solid conductor:0.2 ... 2.5 mm2 / 24 ... 14 AWG
Connection data - Fine-stranded conductor:0.2 ... 2.5 mm2 / 24 ... 14 AWG
Technical data - Control circuit - Input voltage range:-15 ... +10 %
Technical data - Control circuit - Nominal input voltage U_N:DC 24 V
Mechanical data - Mounting type:DIN-35 rail
Mechanical data - Housing design:DIN-rail-mount enclosure
Technical data - Load circuit - Number of changeover/switchover contacts:1
Physical data - Width:17.5 mm / 0.689 inches
Technical data - Load circuit - Contact material (relay):AgNi 90/10
Environmental requirements - Processing temperature:-25 ... +50 °C
Environmental requirements - Ambient temperature (operation at U_N):-25 ... +40 °C
Environmental requirements - Ambient temperature (storage):-40 ... +85 °C
Technical data - Control circuit - Nominal input current at U_N:19 mA
Technical data - Load circuit - Mechanical life:3 x 10^6 switching operations
Commercial data - GTIN:4045450000000
Commercial data - ETIM 8.0:EC001437
Commercial data - ETIM 7.0:EC001437
Commercial data - eClass 10.0:27-14-23-09
Commercial data - eClass 9.0:27-14-23-09
Commercial data - Customs tariff number:85364900990
sku_code:789-304
Environmental Product Compliance - RoHS Compliance Status:Compliant,With Exemption
Environmental Product Compliance - RoHS Exemption:7(a)
Standards and specifications - Standards/specifications:EN 60664-1
Commercial data - Country of origin:DE
Safety and protection - Pollution degree:2
ACCESSORIES_Markingaccessories:
- 2009-145
- 210-110
- 248-450
- 248-451
- 248-452
- 248-453
- 248-454
- 248-455
- 248-501
- 248-502
- 248-503
- 248-504
- 248-506
- 248-566
ACCESSORIES_Tools:210-720
ACCESSORIES_Ferrule:
- 216-241
- 216-242
- 216-243
- 216-244
ACCESSORIES_Jumper:789-112
manufacturer_description:Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 12 A; Red status indicator; Module width: 18 mm; 2,50 mm2; gray
Material data - Weight:50.5g
Material data - Fire load:0.732MJ
Physical data - Height:90 mm / 3.543 inches
manufacturer_detailed_description:Short description:
WAGO's switching relays (789 Series) serve a wide variety of applications, from basic lighting control â€" homes, hotels and commercial structures â€" to comprehensive industrial control cabinets. Just 17.5 mm (0.689 inch) wide, the compact DIN-rail-mount enclosure is ideal for distribution boards and meter cabinets.
Commercial data - Product Group:6 (INTERFACE ELECTRONIC)
Physical data - Depth from upper-edge of DIN-rail:55 mm / 2.165 inches
Safety and protection - Protection type:IP20
Technical data - Load circuit - Drop-out time (typ.):6ms
Technical data - Load circuit - Pull-in time (typ.):8ms
Technical data - Load circuit - Bounce time (typ.):6ms
Primary brand: Wago
Functions: Fixed-type relay module
Design:
- red LED
- Electromechanical design
- 12V / 10mA recommended minimum switching load
Poles: single-pole / 1-pole (1P)
Rated current:
- 12A (continuous)
- 30A (4s) AC inrush maximum current
Rated operating voltage (Ue): 250V
Rated voltage (AC): 250Vac max. (switching voltage)
Rated impulse voltage (Uimp): 4kV
Connection type: CAGE CLAMP spring connections
Control Voltage (DC): 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc)
Mounting mode: DIN-35 rail
Response time:
- (OFF=>ON / contacts closing) 8ms / 0.008s
- (ON=>OFF / contacts opening) 6ms / 0.006s
Contacts type: 1C/O / SPDT (Single Pole Double Throw) contact
Dimensions:
- H90mm x W17.5mm x D55mm
- 17.5mm width
Material: Silver-Nickel (AgNi 90/10) contacts
Ambient air temperature for operation: -25°C...+40°C
Ambient air temperature for storage: -40°C...+85°C
Mechanical durability (at no load): 3 000 000operations
GTIN code: 4045450000000
ETIM code: EC001437
eClass code: 27-14-23-09
Customs Tariff Number: 85364900990
Order code / Manufacturer SKU: 789-304
Manufacturer product status: Commercialized
Equivalent to: 789304
EAN code: 4045450000000
Compliant with standard(s):
- EN 60664-1
- RoHS compliant with exemption (7(a))
Location of origin: Germany
Degree of pollution: 2
Cross-sells with:
- 2009-145
- 210-110
- 210-720
- 216-241
- 216-242
- 216-243
- 216-244
- 248-450
- 248-451
- 248-452
- 248-453
- 248-454
- 248-455
- 248-501
- 248-502
- 248-503
- 248-504
- 248-506
- 248-566
- 789-112
Level 1 category: Automation components
Level 2 category: Control components
Level 3 category: Control relays
Product title: Fixed-type relay module - Wago

More Information

More Information
Main function	Relay
Product series / family name	789 series
Poles	1P
Rated current	10A < In ≤ 15A
Connection type (electrical)	Fixed, Terminals (Spring)
Control Voltage (DC)	24Vdc
Mounting mode	DIN rail
Contacts type	1C/O, SPDT (Single Pole Double Throw)
Degree of protection	IP20
Type - Option	with LED indicator
