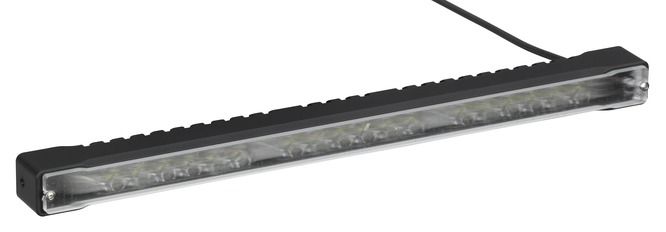

Leuze 50148124; IL BA 012/240 RD 301 L D; Illumination

Type: LED bar lighting with switchable constant light; Suitable for: DCR 1048i, IVS 1048i; Special version: Protective cover, lenticular; Functions: Continuous operation; Light source: LED, Red; Light wavelength: 446 nm; Transmitted-signal shape: Continuous; Illumination intensity [distance]: 74.5 kLx [100 mm], 13.50 kLx [500 mm], 35.0 kLx [200 mm]; Supply voltage: 24 V, DC; Power consumption, max.: 9.5 W, at 24 V DC; Connection 1: Cable with connector, M12, 3 -pin; Design: Cubic; Dimensions: 23.1 mm x 18 mm x 254 mm; Material: Metal; Operating temperature: 0 ... 40 °C; Degree of protection: IP 40
